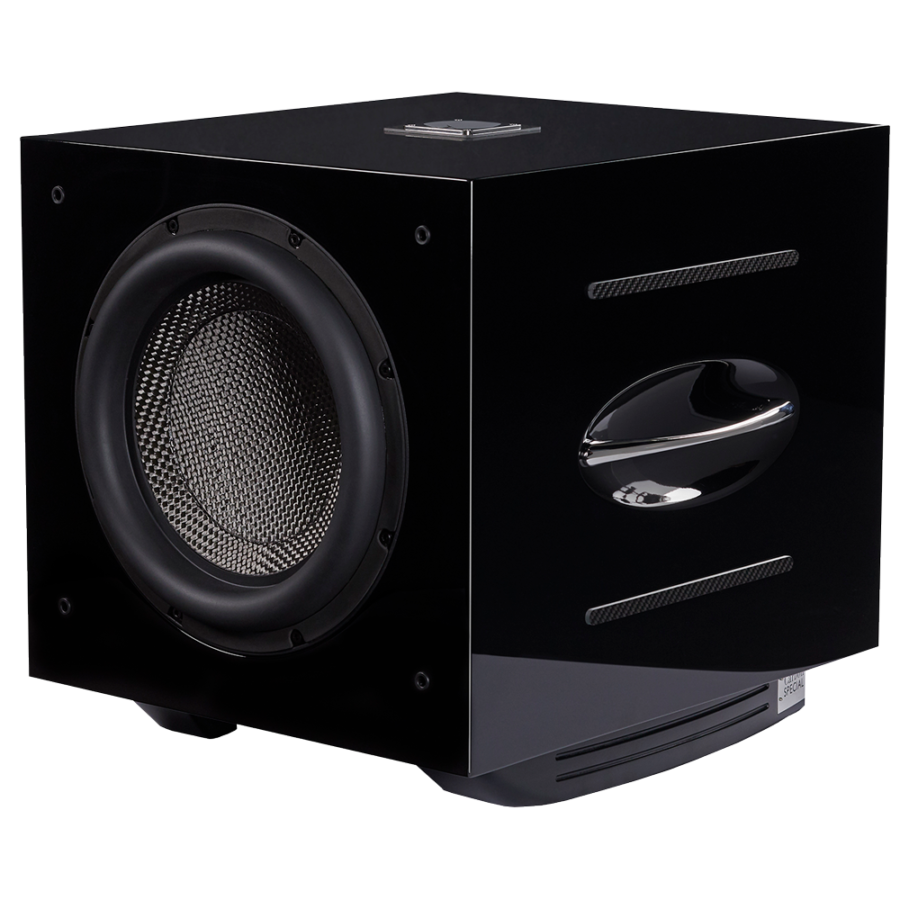

REL Carbon Special

TYPE

Front-firing active driver, down-firing passive

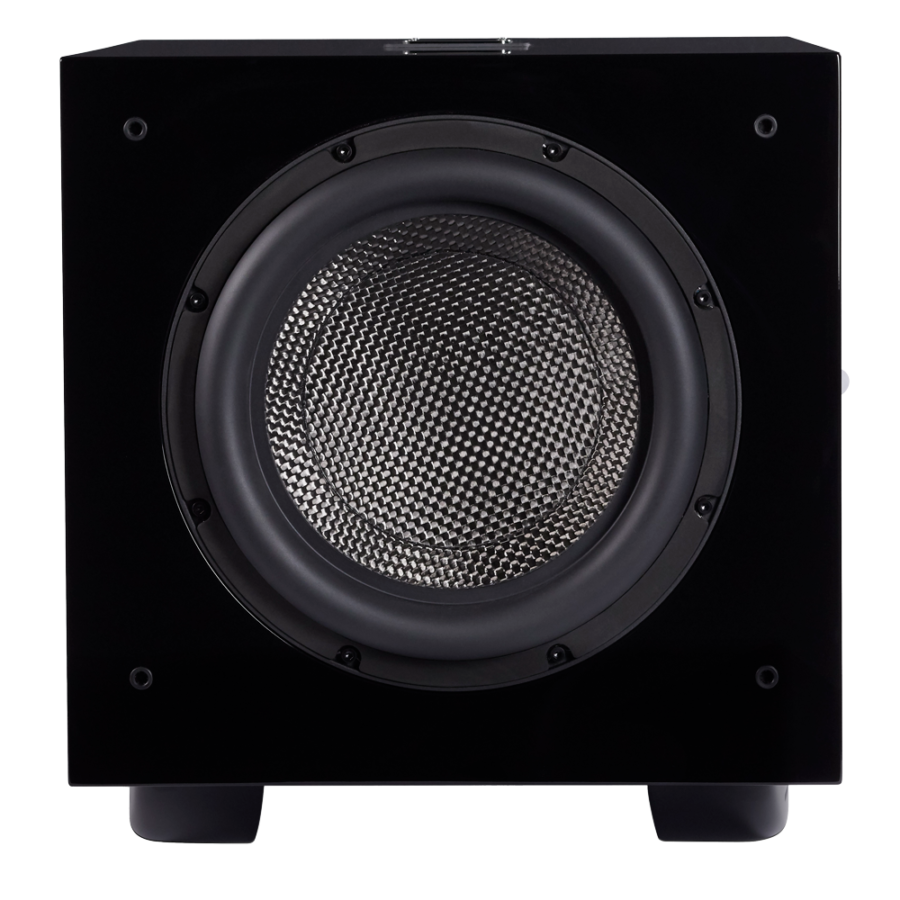

ACTIVE DRIVER SIZE & MATERIAL

12 in. (300mm) long-throw, carbon fibre cone with inverted carbon fibre centre cap, die cast alloy chassis

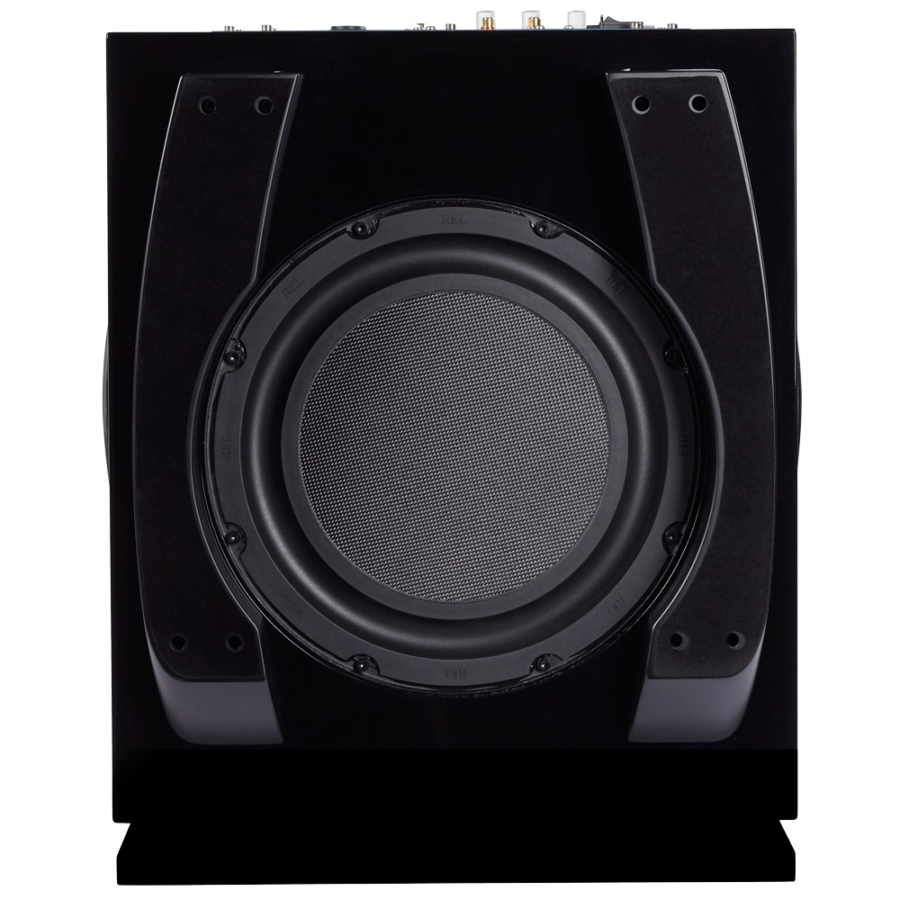

PASSIVE RADIATOR SIZE & MATERIAL

12 in. (300mm), Carbon/Carbon flat cone structure, steel chassis

LOW FREQUENCY EXTENSION

-6 dB at 19Hz (in Room)

INPUT CONNECTORS

High Level Neutrik Speakon, Low Level (2) RCA, (1) LFE RCA, (1) LFE XLR

OUTPUT CONNECTORS

High Level Neutrik Speakon, (1) LFE RCA or (1) LFE XLR

POWER OUTPUT

800 watts (RMS). Up to 1,000 watts (RMS)

AMPLIFIER TYPE

NextGen 5 Class D

WIRELESS CAPABILITY

REL AirShip II (sold separately)

DUAL PARAMETRIC FILTER

N/A

FULLY ELECTRONIC SET SAFE

Yes

D.C. FAULT

Yes

OUTPUT SHORT

Yes

MAINS INPUT VOLTAGE

220-240 volts, 110-120 volts for certain markets

FUSES

5 Amp 220 volts operation, 9 Amp 120 volts operation

W X H X D

17 x 18 x 21.25 in. (430 x 455 x 539 mm)

NET WEIGHT

85.3 lbs. (38.7 kg)

FINISH

Piano Black Lacquer, 8 coats
