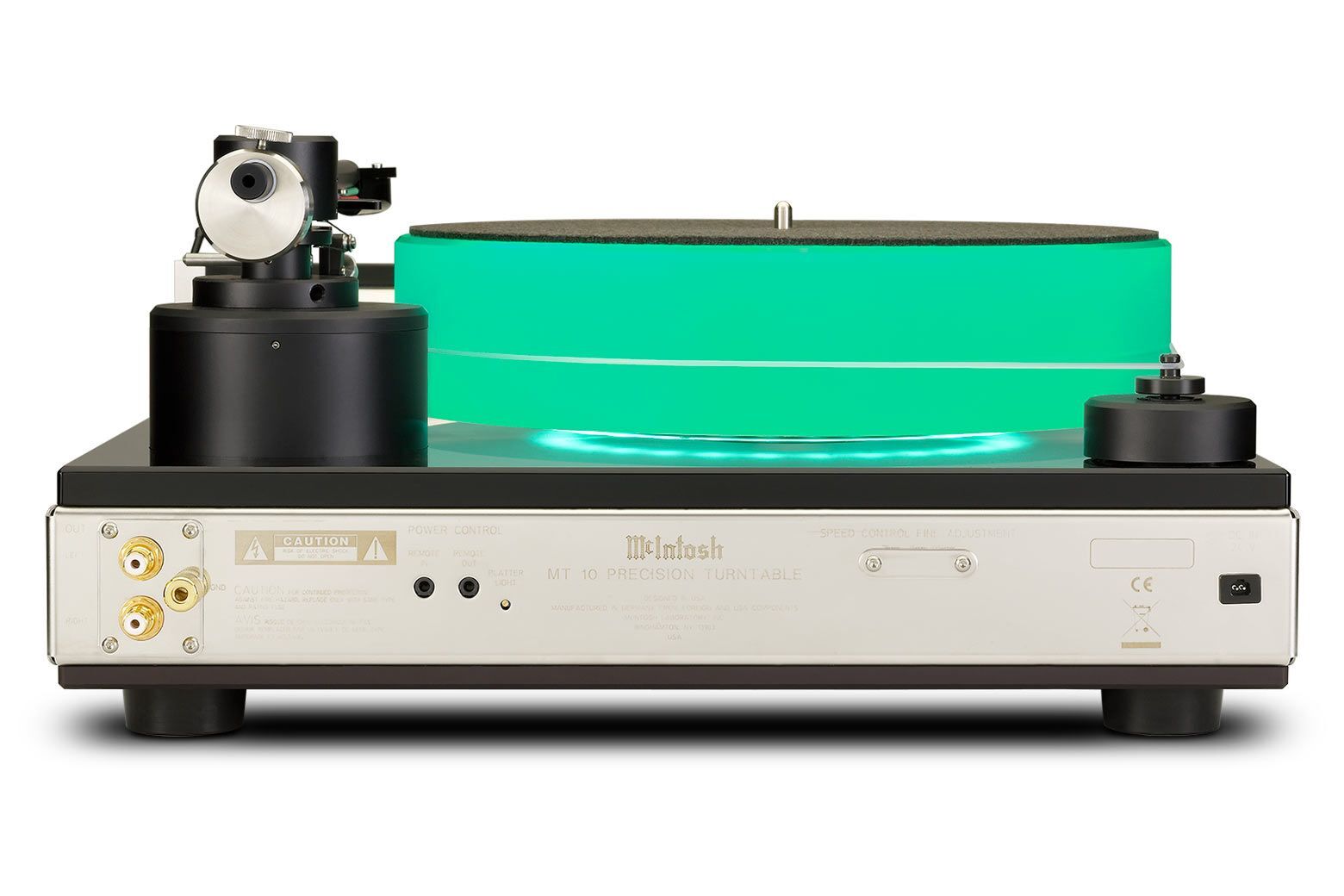

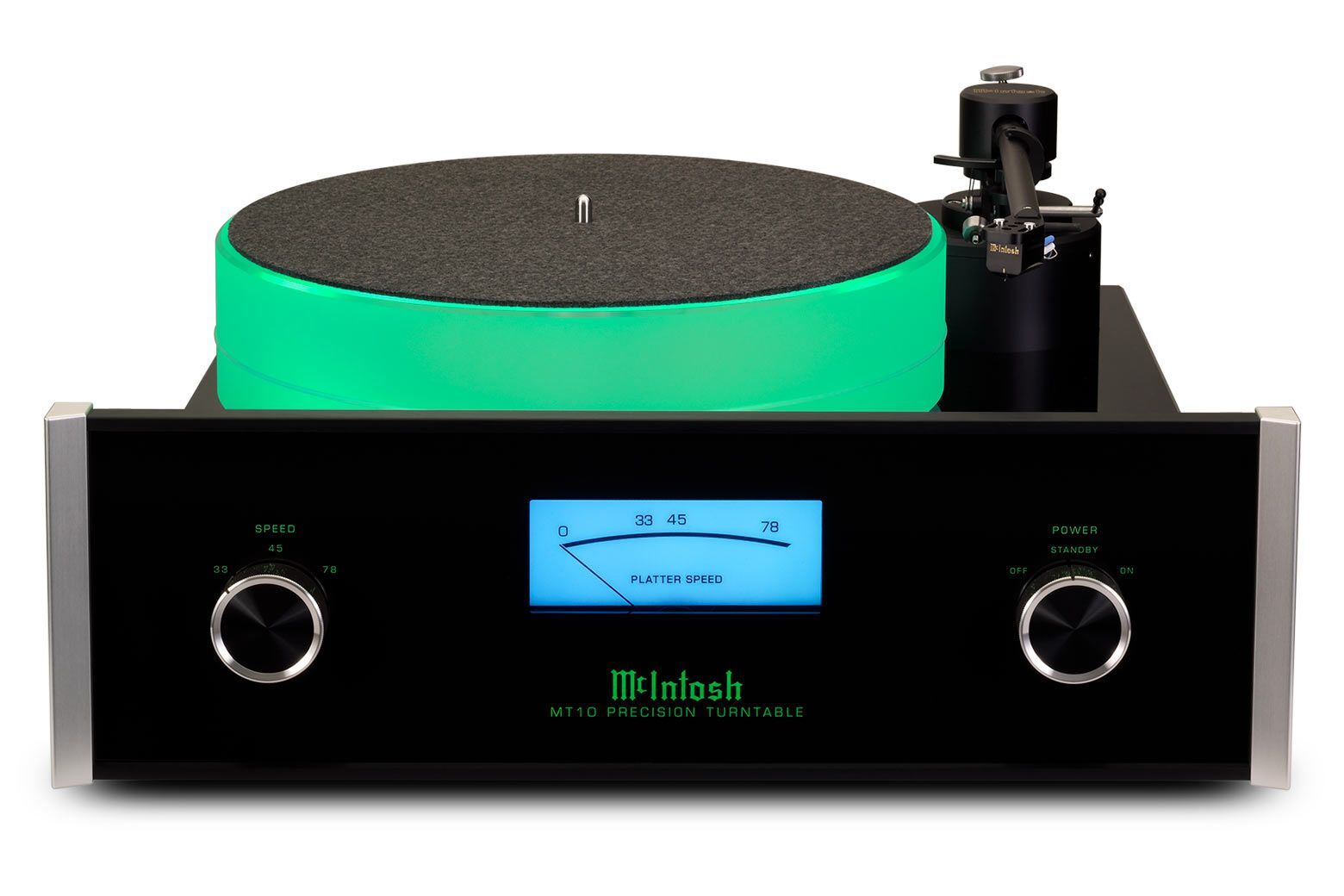

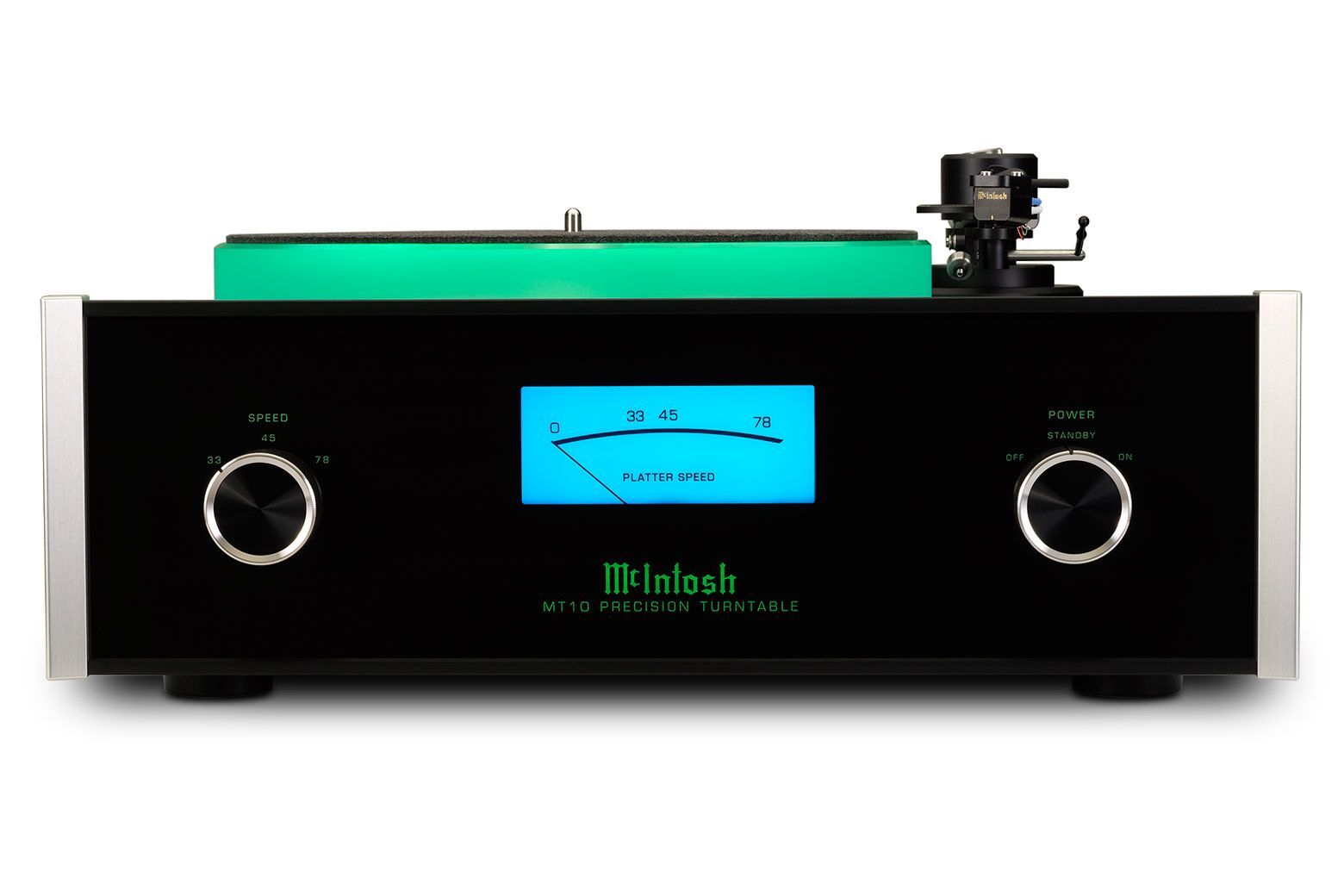

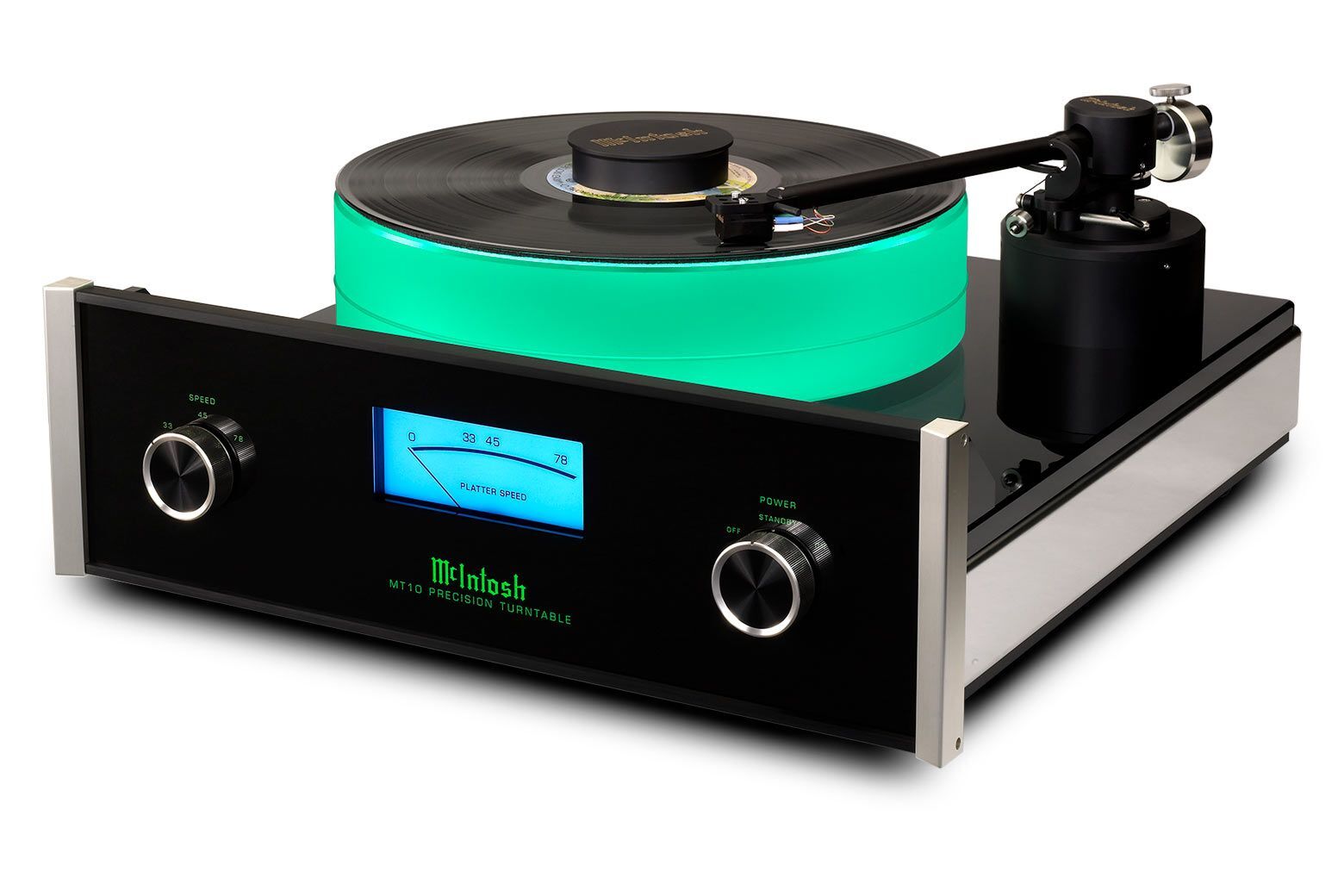

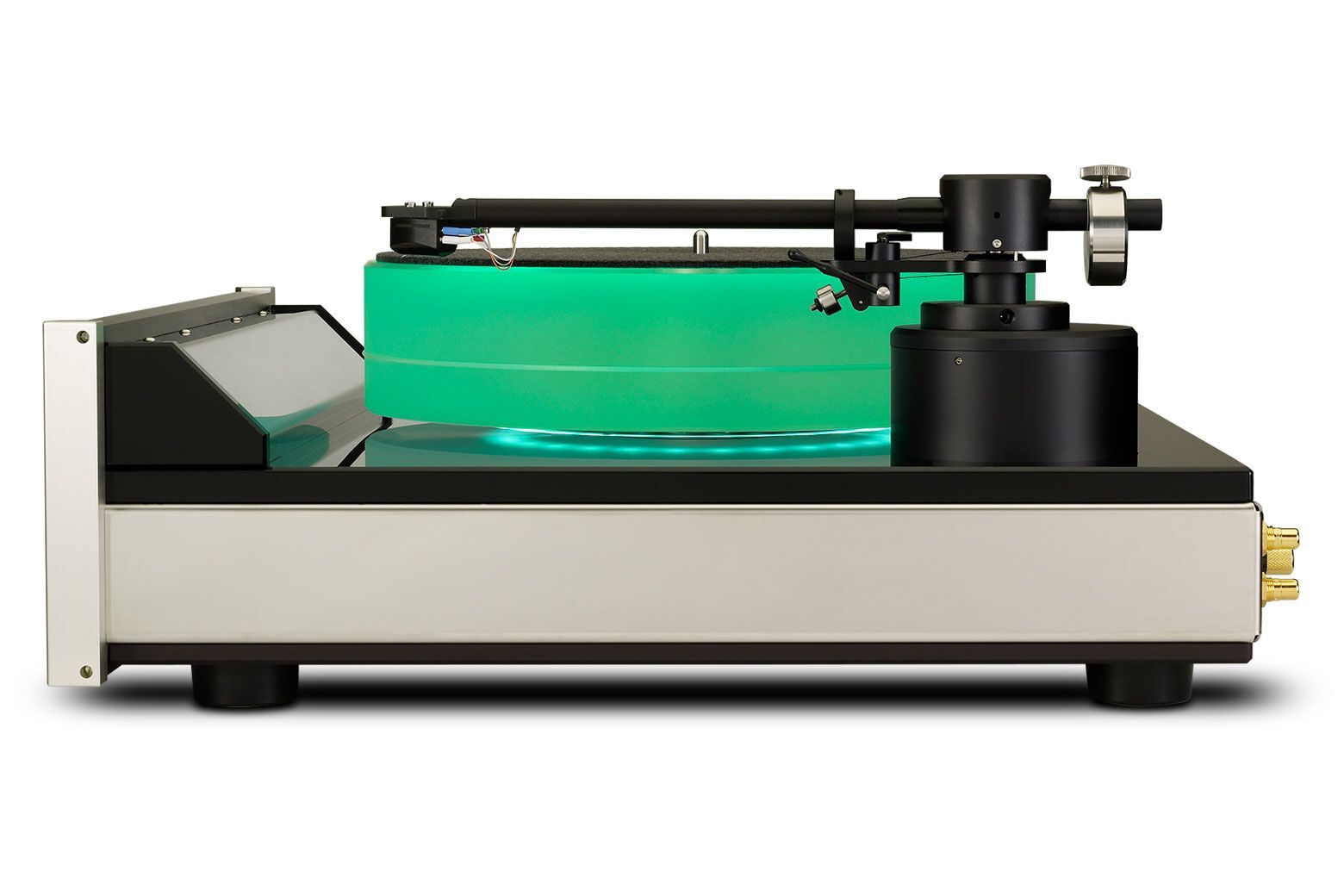

Mcintosh MT10 Precision Turntable

CARTRIDGE SPECIFICATIONS

• Cartridge Type

  Moving Coil, Low Output

• Output Level

  0.5 mV at 5 cm/s

• Load Impedance

  400 to 500 Ohms recommended

• Frequency Response

  20Hz to 50kHz

• Channel Separation

  Greater than 30dB at 1Khz

• Compliance

  6 x 10-6 cm/dyne

• Recommended Tracking Force

  2.4 g

• Channel Difference

  Less than 0.3dB at 1kHz

• Total Mass

  11 g

• Stylus

  Elliptical Diamond

• Cantilever Material

  Aluminum

TONEARM SPECIFICATIONS

• Bearing

  Sapphire and Ceramic

• Arm Tube

  Dural-Aluminum

• Counterweight

  Eccentric

• Adjustments

  Vertical Tracking Angle, Antiskate, Azimuth

TURNTABLE SPECIFICATIONS

• Playback Speeds

  33-1/3, 45 and 78 rpm

• Motor Type

  DC Brushless

• Speed Control

  Electronic w/ braking feature

• Platter

  Silicon Acrylic

• Platter Bearing

  Magnetic Suspended Ceramic

• Signal To Noise Ratio

  41dB - 44dB

• Wow & Flutter

  0.10% - 0.15%

CONNECTIVITY

• Stereo Outputs Unbalanced

  1

CONTROL

• Power Control Input

  1

• Power Control Output

  1

• Platter Light

  Yes

• Speed Control Fine Adjustment

  Yes

GENERAL SPECIFICATIONS

• Dust Cover Included

  No

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D)

  17-1/2" (44.45cm) x 8-13/16" (22.38cm) x 21" (53.34cm)
  Note: Tone Arm Height will vary depending on the type of Cartridge installed.

• Unit Weight

  42 lbs (19 kg)

• Shipping Weight

  63 lbs (28.6 kg)
