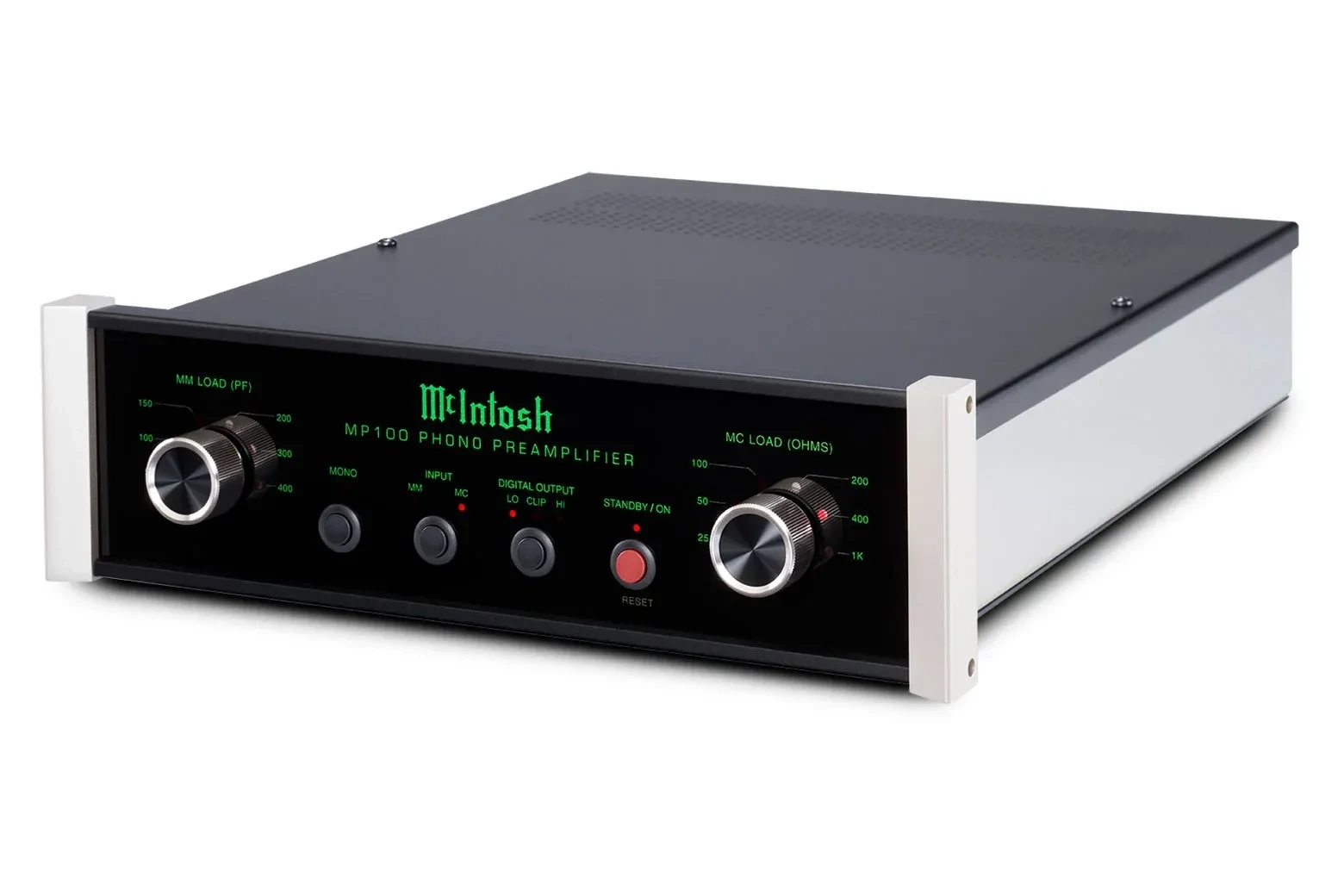

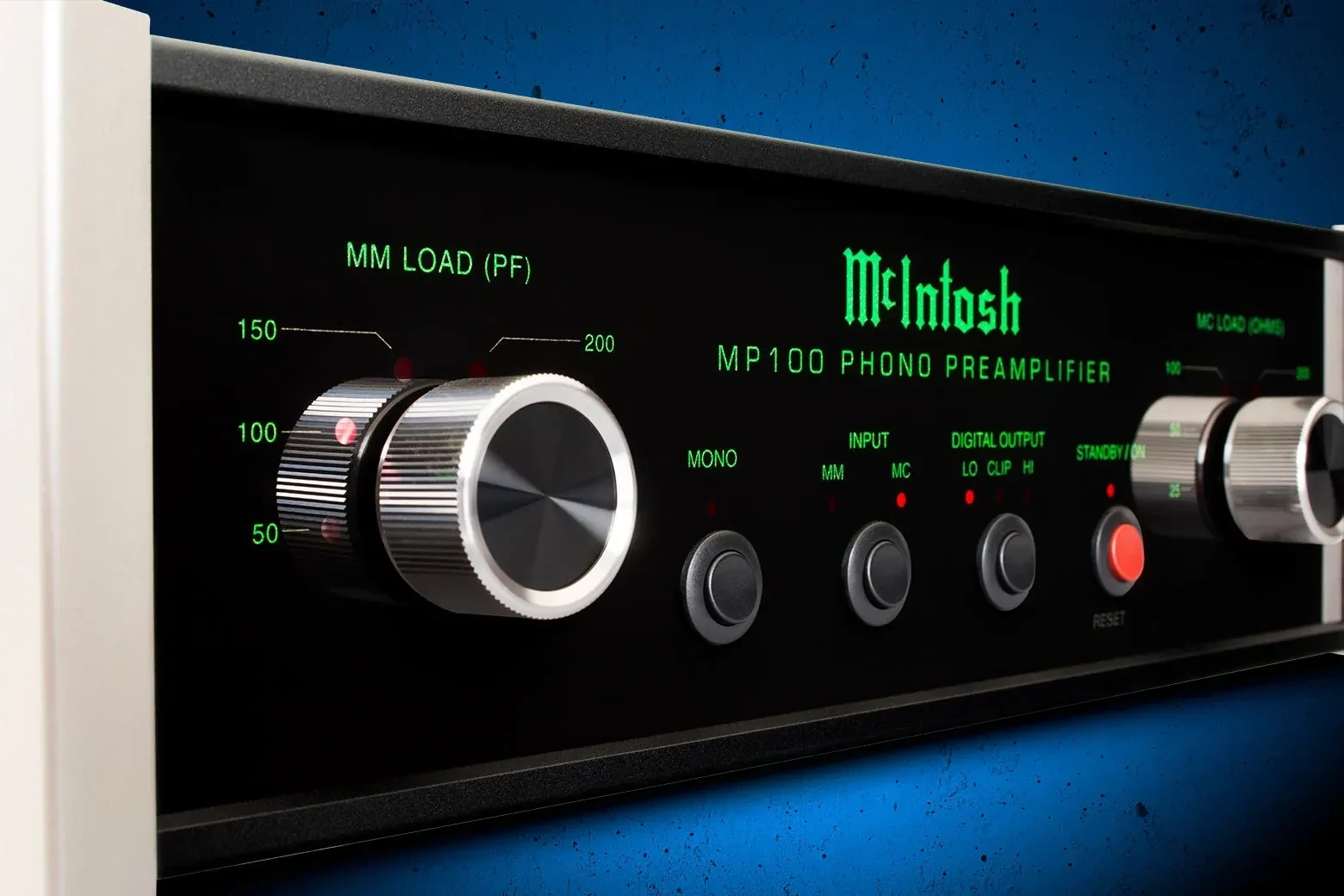

Mcintosh MP100 2-Channel Solid State Phono Preamplifier

ELECTRONIC SPECIFICATIONS

• Total Harmonic Distortion

  0.005%

• Frequency Response

  ±0.3dB from 20Hz to 20,000Hz

• Maximum Volts Out (Balanced / Unbalanced)

  16/8 V RMS

• Input Impedance

  Moving Coil: 25, 50, 100, 200, 400 or 1k Ohms; 470pF
  Moving Magnet: 47k Ohms; 50, 100, 150, 200, 300 or 400pF

• Phono Voltage Gain

  Moving Coil: 60dB
  Moving Magnet: 40dB

• Signal To Noise Ratio

  Moving Coil: 78dB
  Moving Magnet: 80dB

• Maximum Input Signal (Moving Coil)

  8mV

• Maximum Input Signal (Moving Magnet)

  80mV

• Maximum Input Signal (Balanced)

  N/A

• Maximum Input Signal (Unbalanced)

  N/A

• Sensitivity Phono (Moving Coil)

  1mV

• Sensitivity Phono (Moving Magnet)

  10mV

• Sensitivity (Balanced)

  N/A

• Sensitivity (Unbalanced)

  N/A

• Rated Output

  2V Balanced
  1V Unbalanced

• Output Impedance

  200 Ohms Balanced
  100 Ohms Unbalanced

• Phono Equalization Curves

  1: RIAA

• Noise Filters

  0

• Phono Profiles

  0

CONNECTIVITY

• Phono Input Moving Coil

  1 (adjustable)

• Phono Input Moving Magnet

  1 (adjustable)

• Phono Input Universal

  0

• Balanced Line Input

  0

• Unbalanced Line Input

  0

• Balanced Fixed Output

  1 Stereo

• Unbalanced Fixed Output

  1 Stereo

• Digital Coaxial Output

  1

• Digital Optical Output

  1

• Digital USB Audio Output

  1

• Unbalanced Analog Connector Type

  Standard

CONTROL

• Power Control Input

  1

• Power Control Output

  1

DIGITAL AUDIO SPECIFICATIONS

• Digital Output Sample Rate

  Optical: PCM - 24-bit/96kHz
  Coaxial: PCM - 24-bit/96kHz
  USB: PCM - 24-bit/96kHz

GENERAL SPECIFICATIONS

• Multi-Chassis or Single

  Single

• Output Meters

  No

• Vacuum Tube or Solid State

  Solid State

• Power Consumption (On)

  8 Watts

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D)

  11.5" (29.2cm) x 3.78125" (9.6cm) x 16.75" (42.5cm)

• Unit Weight

  8.6 lbs (3.9 kg)

• Shipping Weight

  9.6 lbs (4.4 kg)
