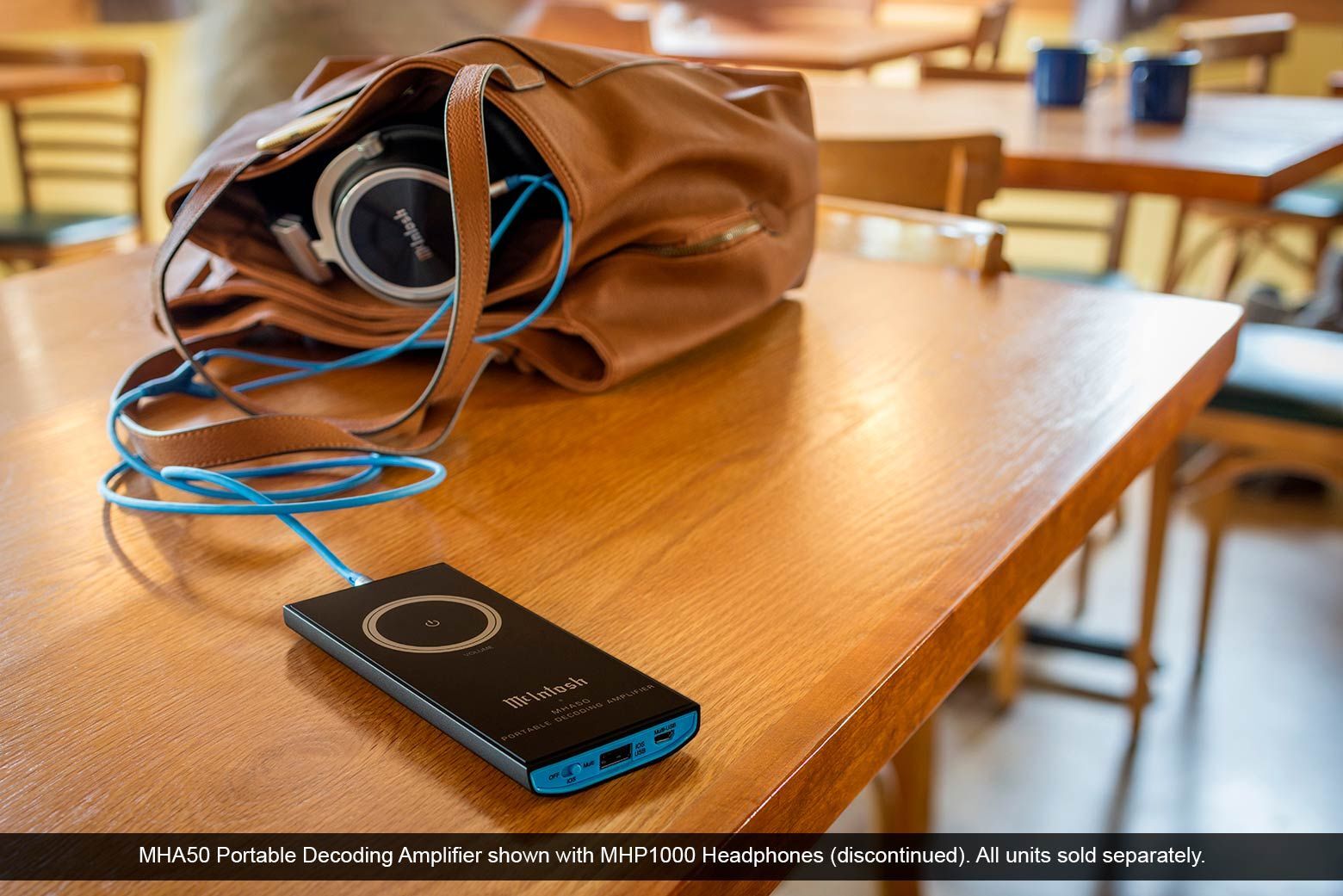

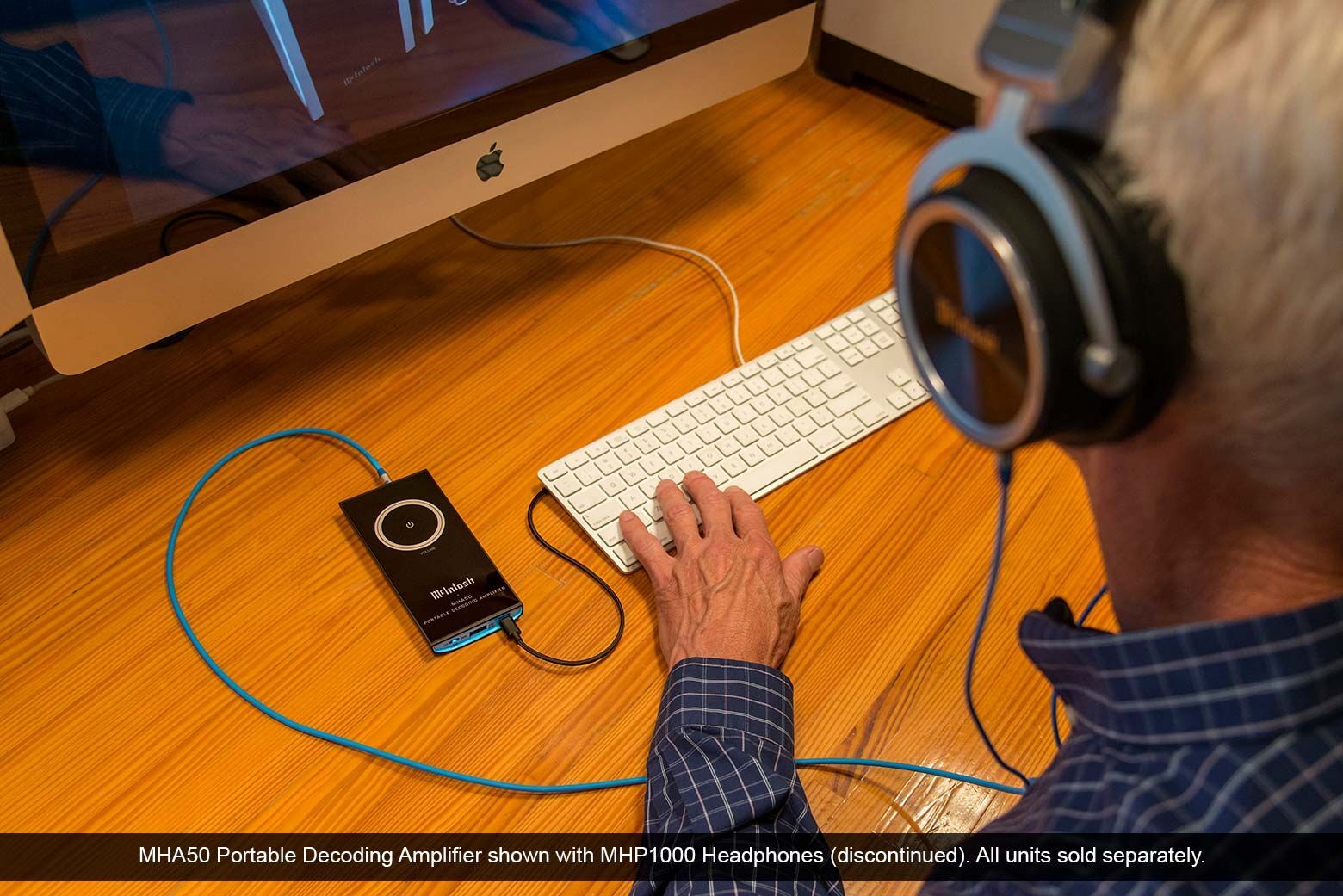

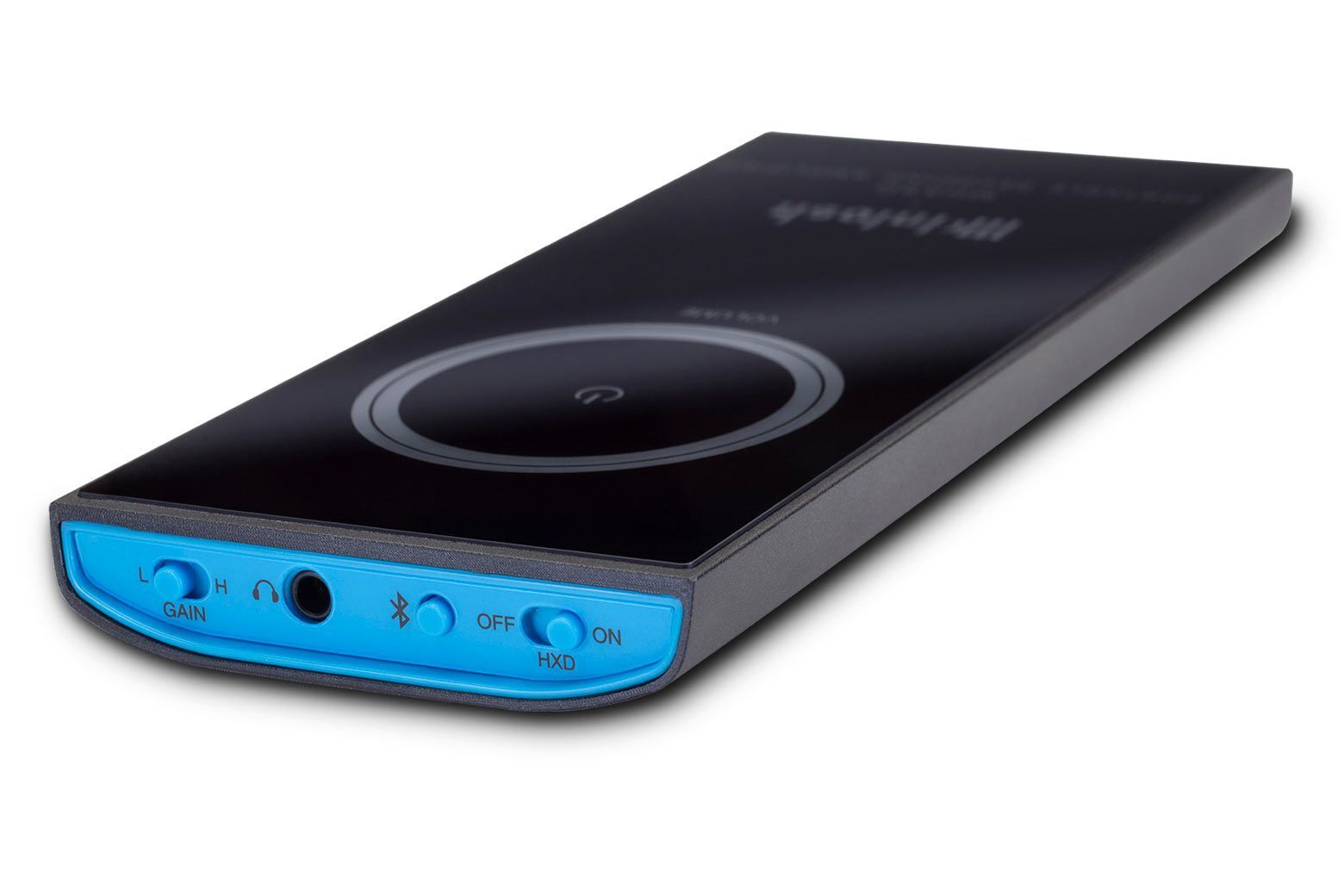

Mcintosh MHA50 Portable Decoding Amplifier

HEADPHONE OUTPUT SPECIFICATIONS

• Headphone Power Output

  200mW

• Headphone Output Impedance

  8-600 Ohms

ELECTRONIC SPECIFICATIONS

• Rated Power Band

  20Hz to 20kHz

• Total Harmonic Distortion

  0.005%

• Frequency Response

  +0, -0.5dB from 20Hz to 50kHz

• Signal To Noise Ratio

  105dB

• Preamplifier Output

  1.8V

CONNECTIVITY

• Headphone Output

  3.5mm with Headphone Crossfeed Director (HXD®)

• Digital USB Input

  2 (1 Type A, 1 micro B)

• Wireless Input

  Bluetooth 4.2 A2DP with support for AAC and aptX

• Source Support

  Apple iOS devices; Android devices (must be compatible with USB On-The-Go technology to use a wired connection); MacOS & Windows OS computers

DIGITAL AUDIO SPECIFICATIONS

• Digital USB Input Sample Rate

  PCM 16-bit, 24-bit, 32-bit to 192kHz, DSD64, DSD128, DXD352.8, DXD384

GENERAL SPECIFICATIONS

• Output Meters

  No

• Vacuum Tube or Solid State

  Solid State

• Power Requirement

  5V DC, 0.7A

• Output Type

  N/A

• Battery Playback Life

  Up to 6 hours with Bluetooth connection; playback can last even longer when using the wired connections

• Included In The Box

  1 leather carrying case
  1 Lightning to USB-A cable
  1 USB micro-B to USB-A cable
  1 USB micro-B to USB micro-B cable
  1 USB micro-B to USB-C OTG cable
  1 wall mount charger with USA plug and adapter for Europe and Japan
  All cables are 8"/200mm long

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D)

  2.7" (7cm) x 6.1" (15.5cm) x 0.6" (1.4cm)

• Unit Weight

  0.5 lbs (0.2 kg)

• Shipping Weight

  1 lbs (0.5 kg)
