0.5% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz <0.20% at 1W, 20Hz to 20,000Hz
Intermodulation Distortion
0.04% Typical 0.4% Maximum
Dynamic Headroom
1.5dB
Frequency Response
+0, -0.5dB from 20Hz to 20,000Hz
Sensitivity (Unbalanced)
1.0 Vrms
Sensitivity (Balanced)
2.0 Vrms
Maximum Input Signal (Unbalanced)
8V
Maximum Input Signal (Balanced)
16V
Signal To Noise Ratio
94dB
Input Impedance (Balanced / Unbalanced)
20K/10K
Damping Factor
>150
Preamplifier Output
N/A
Preamplifier Output Impedance
N/A
Voltage Gain
12dB at 32 Ohms 17dB at 100 Ohms 21dB at 250 Ohms 25dB at 600 Ohms
Power Guard
No
CONNECTIVITY

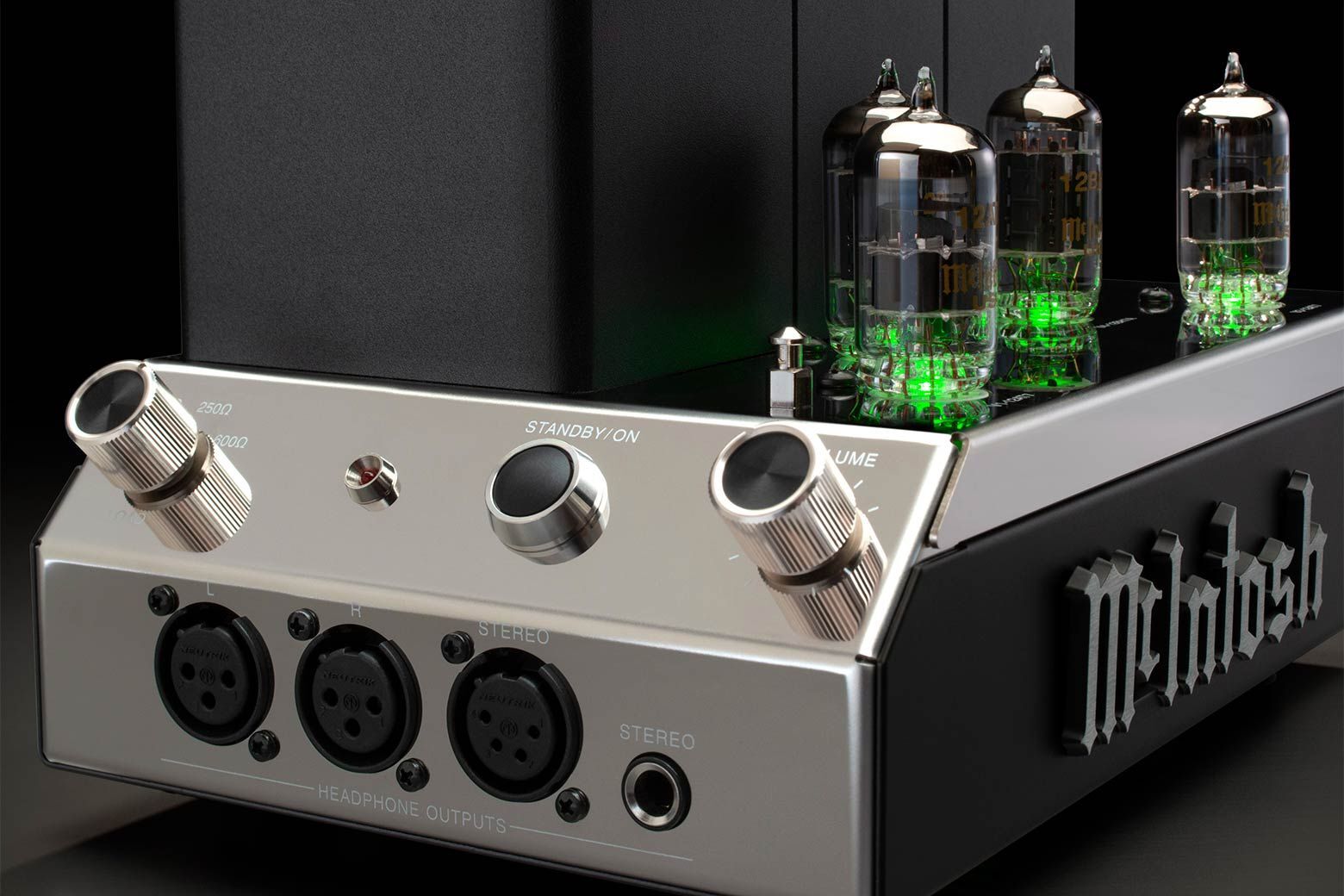

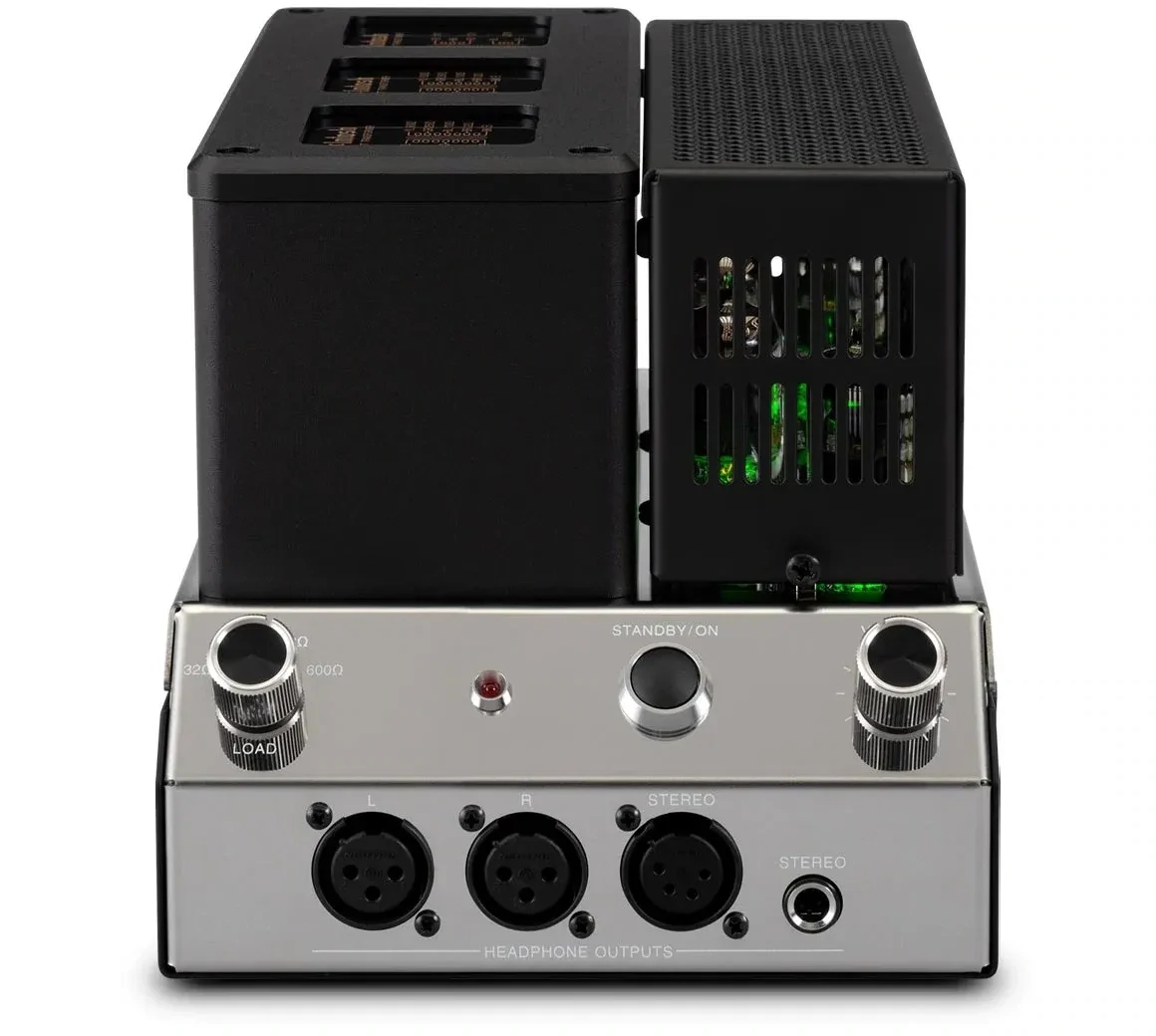

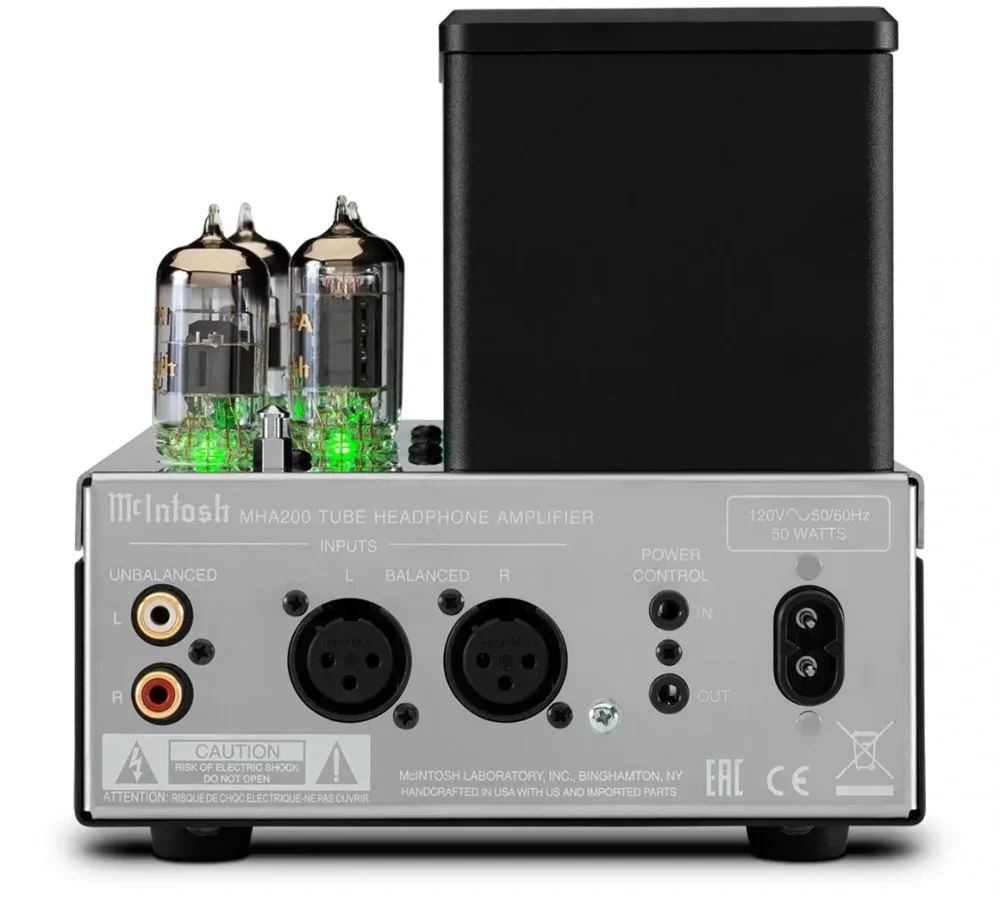

Headphone Output
One pair of 3-pin balanced XLR connectors for dedicated Left and Right balanced output; One 4-pin balanced XLR connector for balanced stereo output; One 1/4" stereo headphone jack
Balanced Input
1
Unbalanced Input
1
Digital AES/EBU Input
0
Digital Coaxial Input
0
Digital Optical Input
0
Digital MCT Input
0
Digital USB Input
0
Preamplifier Output
0
DIGITAL AUDIO SPECIFICATIONS
Digital AES/EDU Input Sample Rate
N/A
Digital Coaxial Input Sample Rate
N/A
Digital Optical Input Sample Rate
N/A
Digital MCT Input Sample Rate
N/A
Digital USB Input Sample Rate
N/A
CONTROL
Tone Controls
No
Power Control Input
1
Power Control Output
1
GENERAL SPECIFICATIONS
Output Meters
No
Vacuum Tube or Solid State
Vacuum Tube
Power Requirement
120V 50/60Hz, 1.5A
Standby Power Requirement
<0.5 Watts
Output Type
Unity Coupled Output Transformer
WEIGHTS & DIMENSIONS
Unit Dimensions (W x H x D)
6-1/8" (15.6cm) x 5-3/4" (14.6cm) x 9-1/8" (23.2cm)
