0.005% maximum, if the instantaneous peak power is 100 watts or less per channel with both channels operating for any combination of frequencies from 20Hz to 20kHz
Dynamic Headroom
1.5dB
Frequency Response
+0, -0.5dB from 20Hz to 20kHz +0, -3dB from 10Hz to 100kHz
Sensitivity (Unbalanced)
300mV
Sensitivity (Balanced)
600mV
Maximum Input Signal (Unbalanced)
8V
Maximum Input Signal (Balanced)
16V
Signal To Noise Ratio
105dB
Input Impedance (Balanced / Unbalanced)
25K/25K
Damping Factor
>150
Preamplifier Output
3V (8V maximum)
Preamplifier Output Impedance
500 Ohms
Voltage Gain
36.5dB
Power Guard
<2% THD with up to 16dB overdrive at 1kHz
CONNECTIVITY

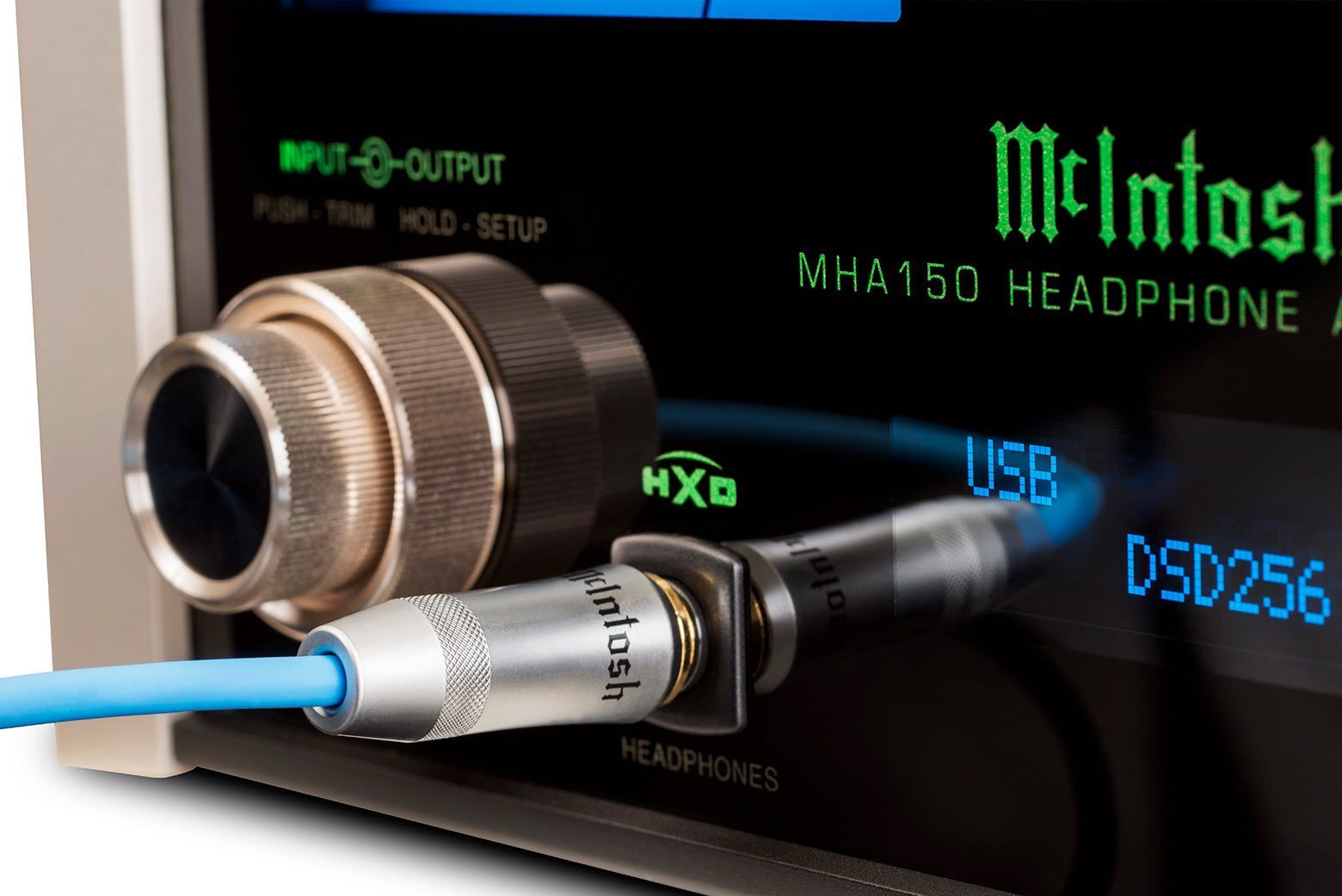

Headphone Output
1/4" High Drive with Headphone Crossfeed Director (HXD®)
Balanced Input
1
Unbalanced Input
1
Digital AES/EBU Input
0
Digital Coaxial Input
1
Digital Optical Input
1
Digital MCT Input
1
Digital USB Input
1
Preamplifier Output
1
DIGITAL AUDIO SPECIFICATIONS
Digital AES/EDU Input Sample Rate
N/A
Digital Coaxial Input Sample Rate
16-bit, 24-bit - 32kHz to 192kHz
Digital Optical Input Sample Rate
16-bit, 24-bit - 32kHz to 192kHz
Digital MCT Input Sample Rate
16-bit, 24-bit - 32kHz to 192kHz
Digital USB Input Sample Rate
16-bit, 24-bit, 32-bit - 32kHz to 384kHz
CONTROL
Tone Controls
5 Step Bass Boost Control: 0 to +12.5dB (in 2.5dB steps) @ 40Hz
Power Control Input
1
Power Control Output
1
GENERAL SPECIFICATIONS
Output Meters
Yes
Vacuum Tube or Solid State
Solid State
Power Requirement
120V 50/60Hz, 1.5A
Standby Power Requirement
<0.25 Watts
Output Type
Autoformer™ for Headphones Direct Coupled for Speakers
WEIGHTS & DIMENSIONS
Unit Dimensions (W x H x D)
11-1/2" (29.2cm) x 5-7/8" (14.9cm) x 14-5/8" (37.1cm)
