4Hz to 40kHz, +0.5, -2dB (SACD) 4Hz to 20kHz, ±0.5dB (CD)
Signal To Noise Ratio
Better than 108dB (A-weighted)
Dynamic Range
Better than 100dB
Total Harmonic Distortion
0.003% @ 1000Hz (SACD) 0.002% @ 1000Hz (CD)
Channel Separation
Better than 98dB (1,000Hz)
Headphone Output Impedance
N/A
DIGITAL AUDIO SPECIFICATIONS
Digital-to-Analog Converter (DAC) Type
2-channel, 32-bit/192kHz PCM/DSD
Coaxial Sample Rate
N/A
Optical Sample Rate
N/A
USB Sample Rate
N/A
Digital Coaxial Input
N/A
Digital Optical Input
N/A
Digital Output Sample Rate
Up to 24-bit/192kHz
Digital Optical Output
-15dbm to -21dbm
Digital USB Input Type
N/A
Digital Coaxial Output
0.5V p-p/75 ohms
Digital XLR Output
N/A
Digital MCT Output
N/A
Digital Output Jitter
N/A

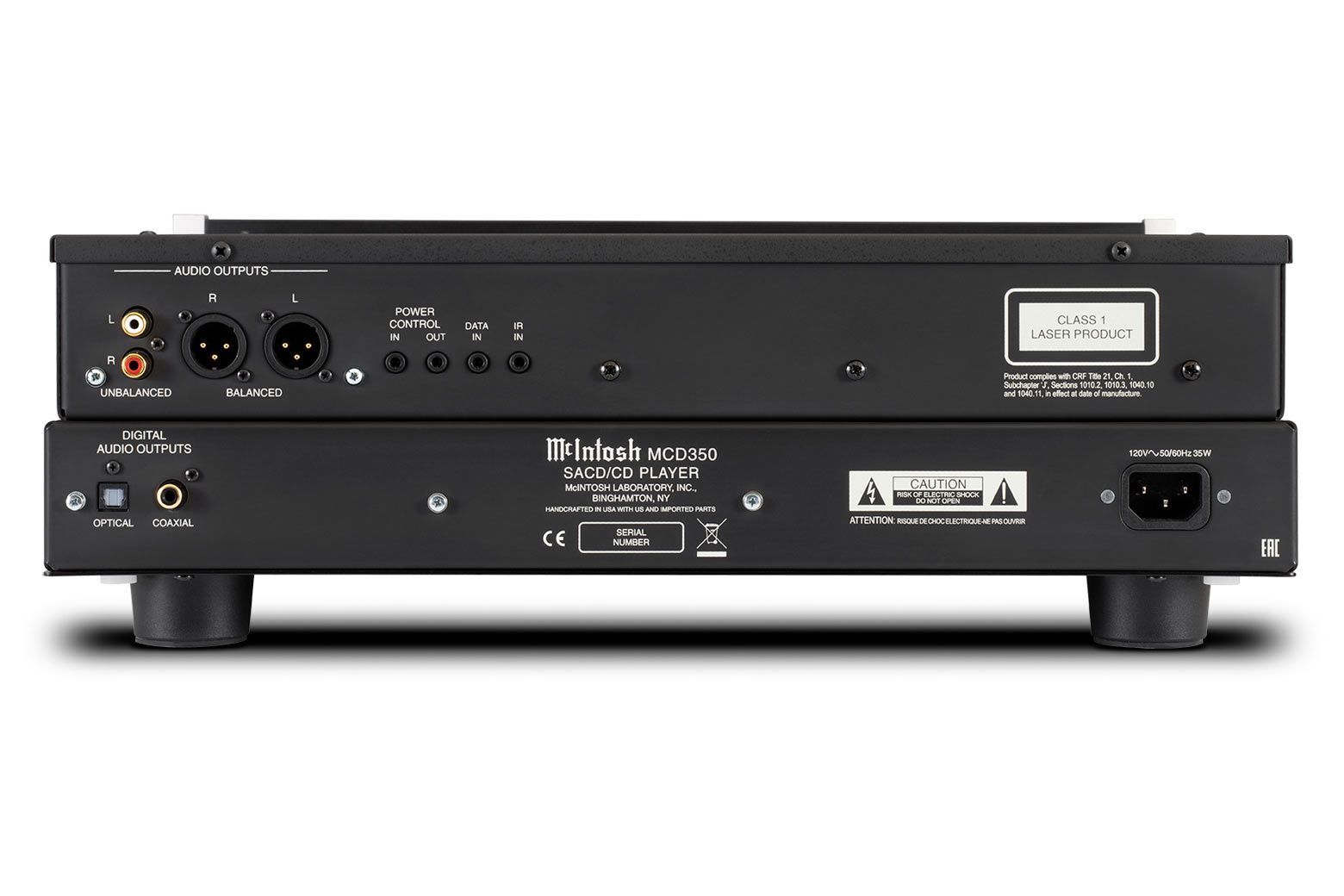

CONNECTIVITY
Balanced Fixed Output
1
Unbalanced Fixed Output
1
Balanced Variable Output
0
Unbalanced Variable Output
0
Digital Coaxial Input
0
Digital MCT Input
0
Digital Optical Input
0
Digital USB Input
0
Digital USB Input Type
N/A
Digital Coaxial Output
1
Digital MCT Output
0
Digital Optical Output
1
Digital XLR Output
0
Headphone Output
0
CONTROL
Power Control Input
1
Power Control Output
1
Rear Panel Data Input
1
Rear Panel IR Sensor Input
1
RS232 Control Input
0
GENERAL SPECIFICATIONS
Disc Formats
CD, SACD, MP3 and WMA
Disc Capacity
1
Laser Type
Twin Beam
Laser Beam Wavelength
650nm (SACD) 790nm (CD)
Laser Power
CLASS IIa/CLASS I
Standby Power Requirement
<0.5 watt
WEIGHTS & DIMENSIONS
Unit Dimensions (W x H x D)

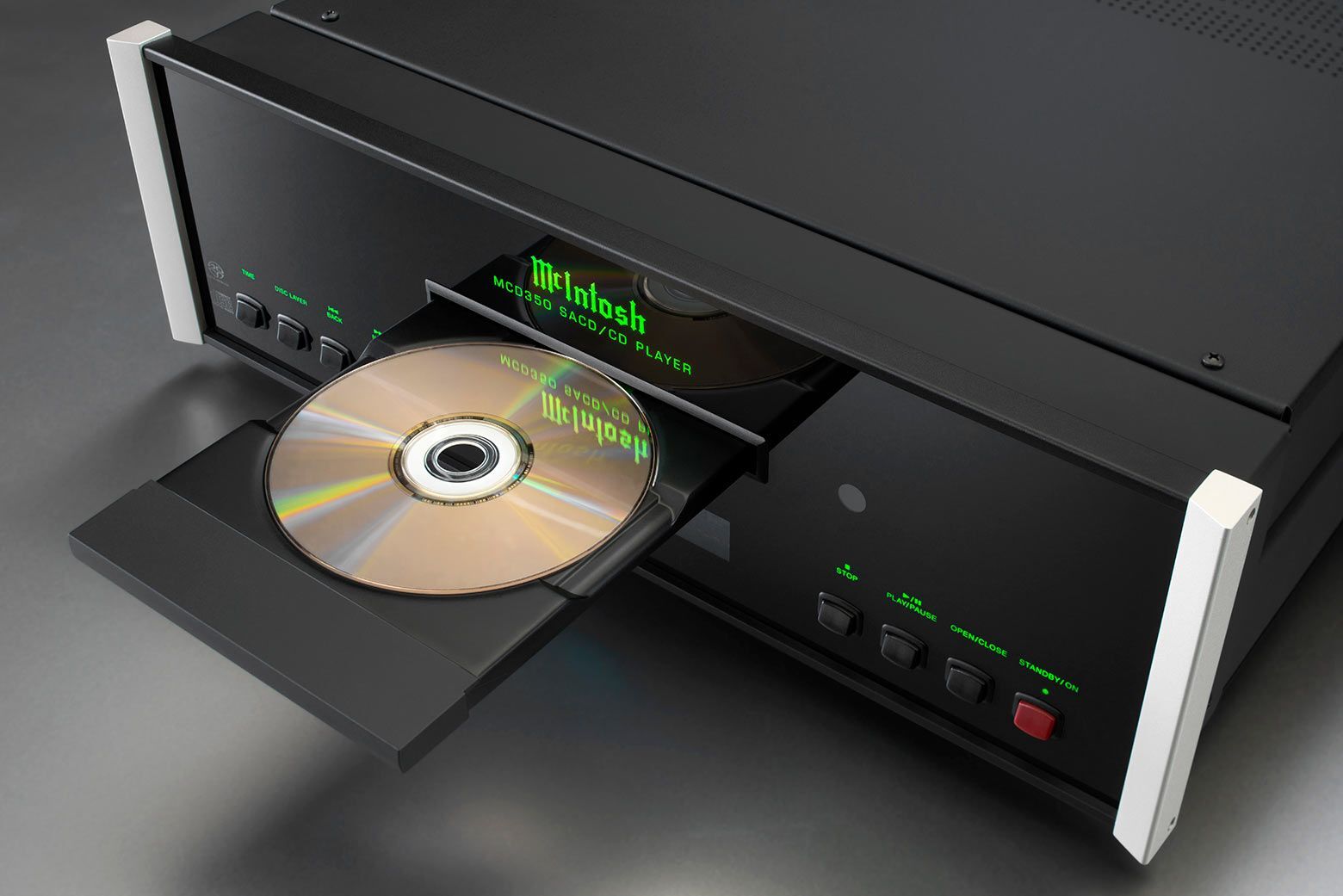

17-1/2" (44.45cm) x 6" (15.24cm) x 19" (48.3cm) Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm).
