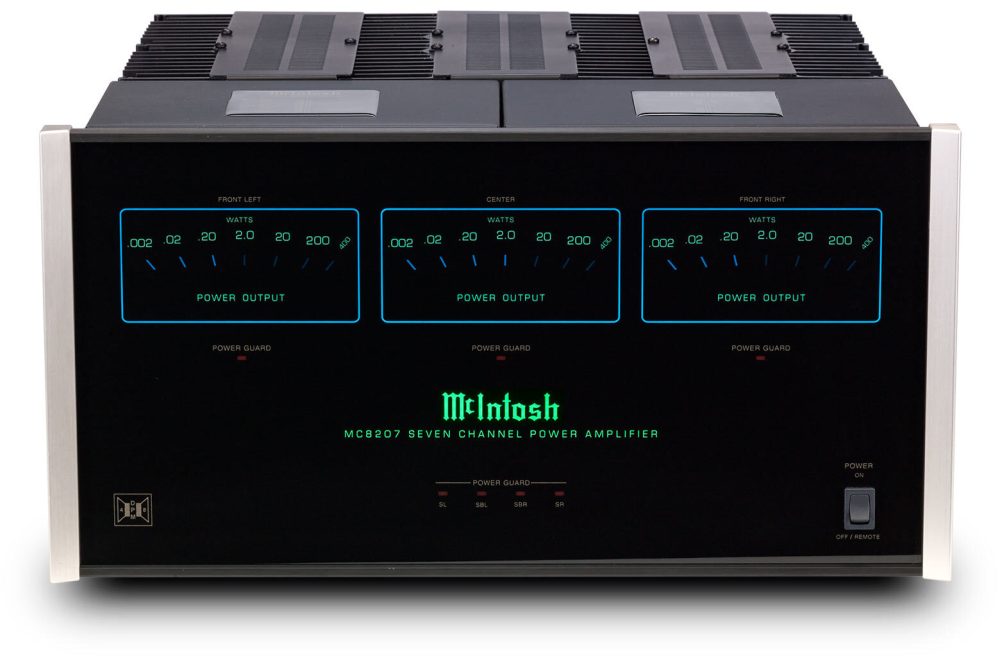

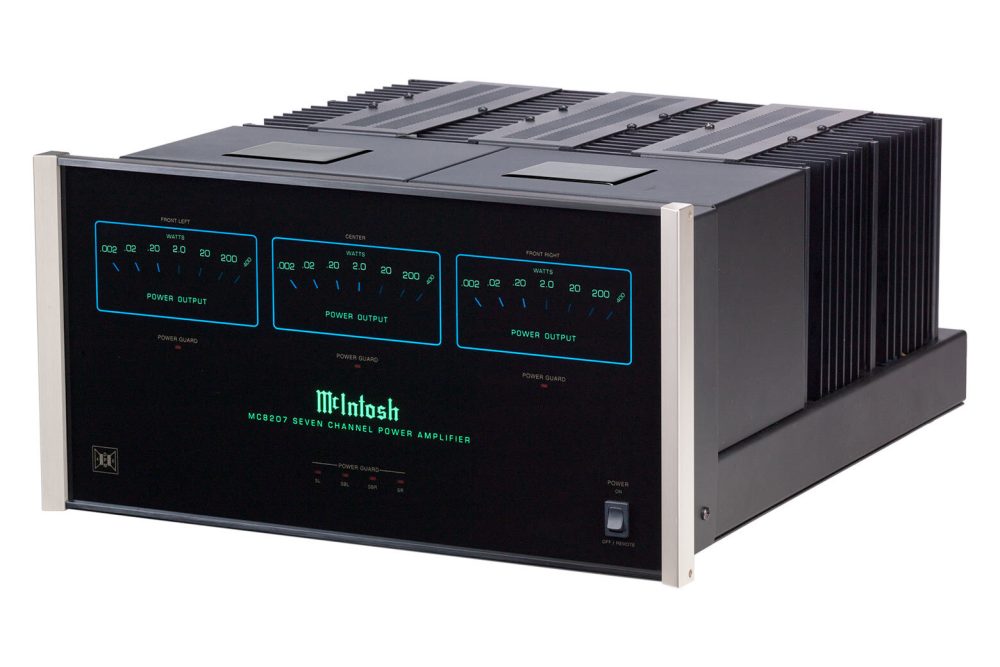

Mcintosh MC8207 7-Channel Solid State Amplifier

ELECTRONIC SPECIFICATIONS

• Power Output per Channel

  200W @ 4 or 8 Ohms

• Number of Channels

  7 (can also be used as a 2-zone amplifier with 5 channels in zone A and 2 channels in zone B)

• Total Harmonic Distortion

  0.005%

• S/N below rated output

  112dB

• Dynamic Headroom

  1.7dB

• Damping Factor

  >140

• Rated Power Band

  20Hz to 20kHz

• Frequency Response

  +0, -0.25dB from 20Hz to 20,000Hz
  +0, -3dB from 10Hz to 100,000Hz

CONTROL

• Remote Power Control

  Yes, 7 or 5 + 2 Channel

• Multi-Channel DB25 Cable

  N/A

GENERAL SPECIFICATIONS

• Circuit Configuration

  Push-Pull Complementary

• Circuit Design

  Solid State

• Mono Bridge

  No

• Mono Parallel

  No

• Output Type

  Direct Coupled with Dynamic Power Manager®

• Meters

  Yes, new style LED

• Meter Light Switch

  No

• Balanced Input

  Yes

• Front Panel

  Glass

• Illumination

  LED Fiber Optic

• Chassis Style

  Inverted

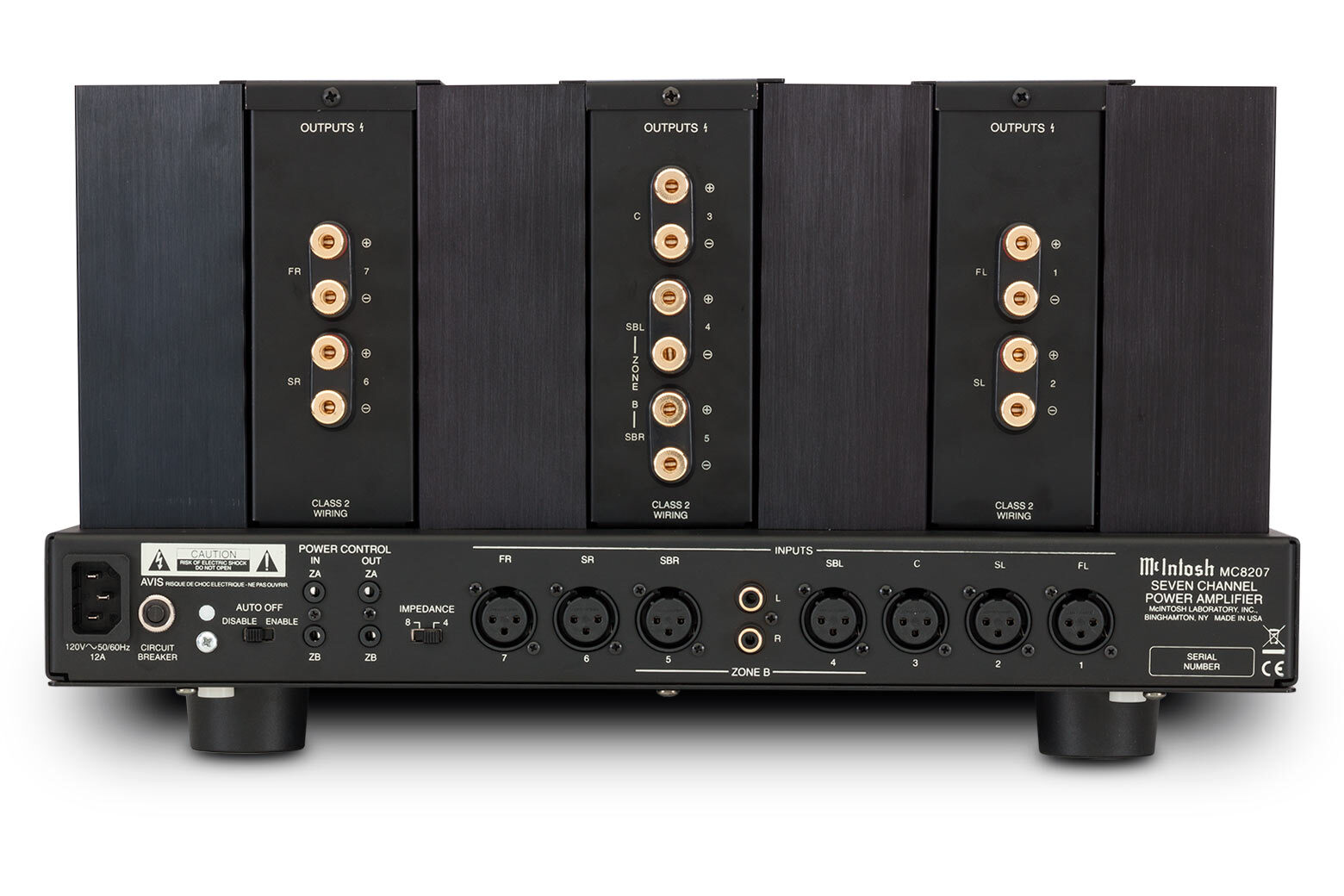

CONNECTIVITY

• Speaker Binding Post Type

  Yes

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D)

  17-1/2" (44.5cm) x 9-7/16" (23.9cm) (including feet) x 21" (53.3cm) (including front panel and cables)

• Unit Weight

  83 lbs (37.6 kg)

• Shipping Weight

  116 lbs (52.6 kg)
