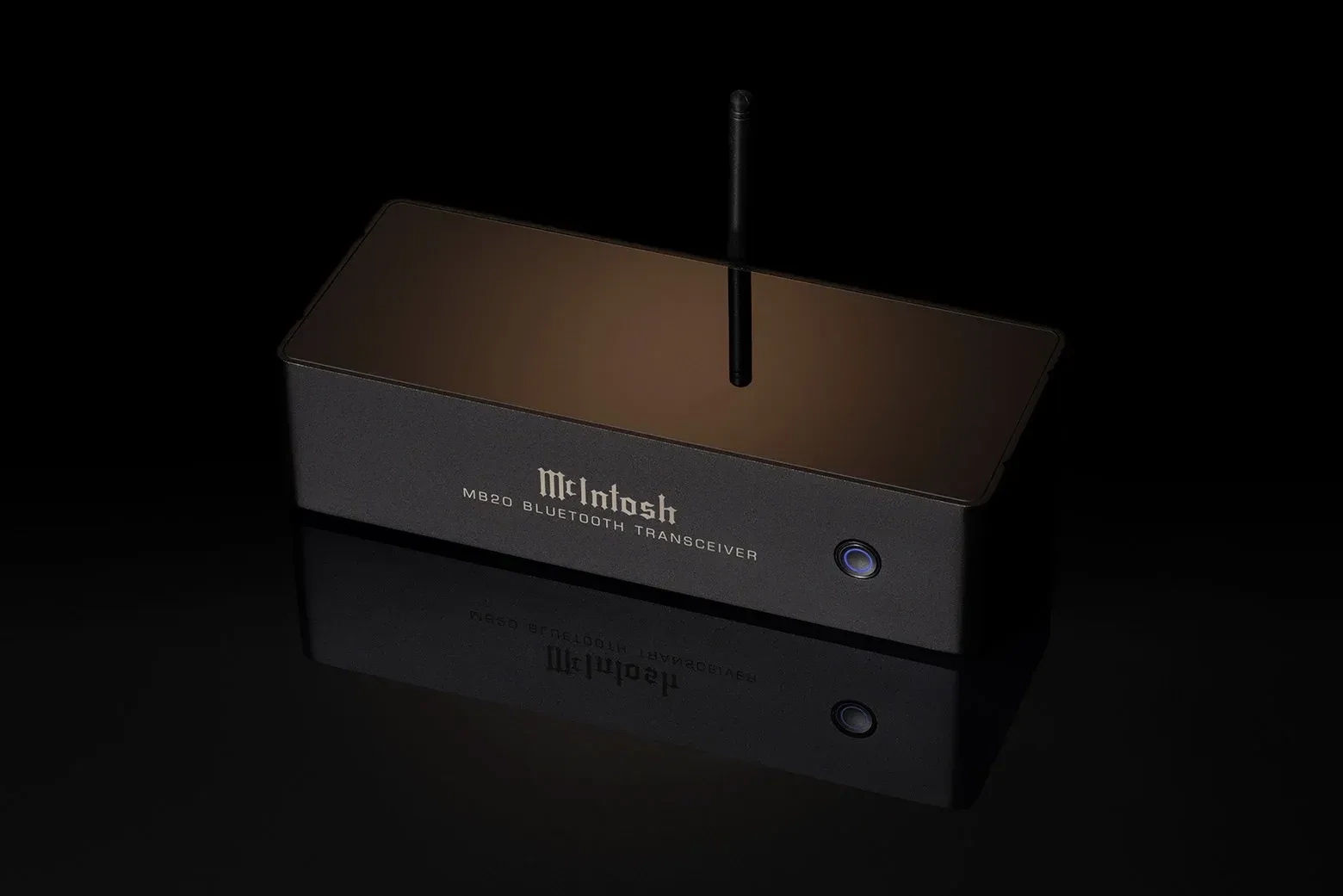

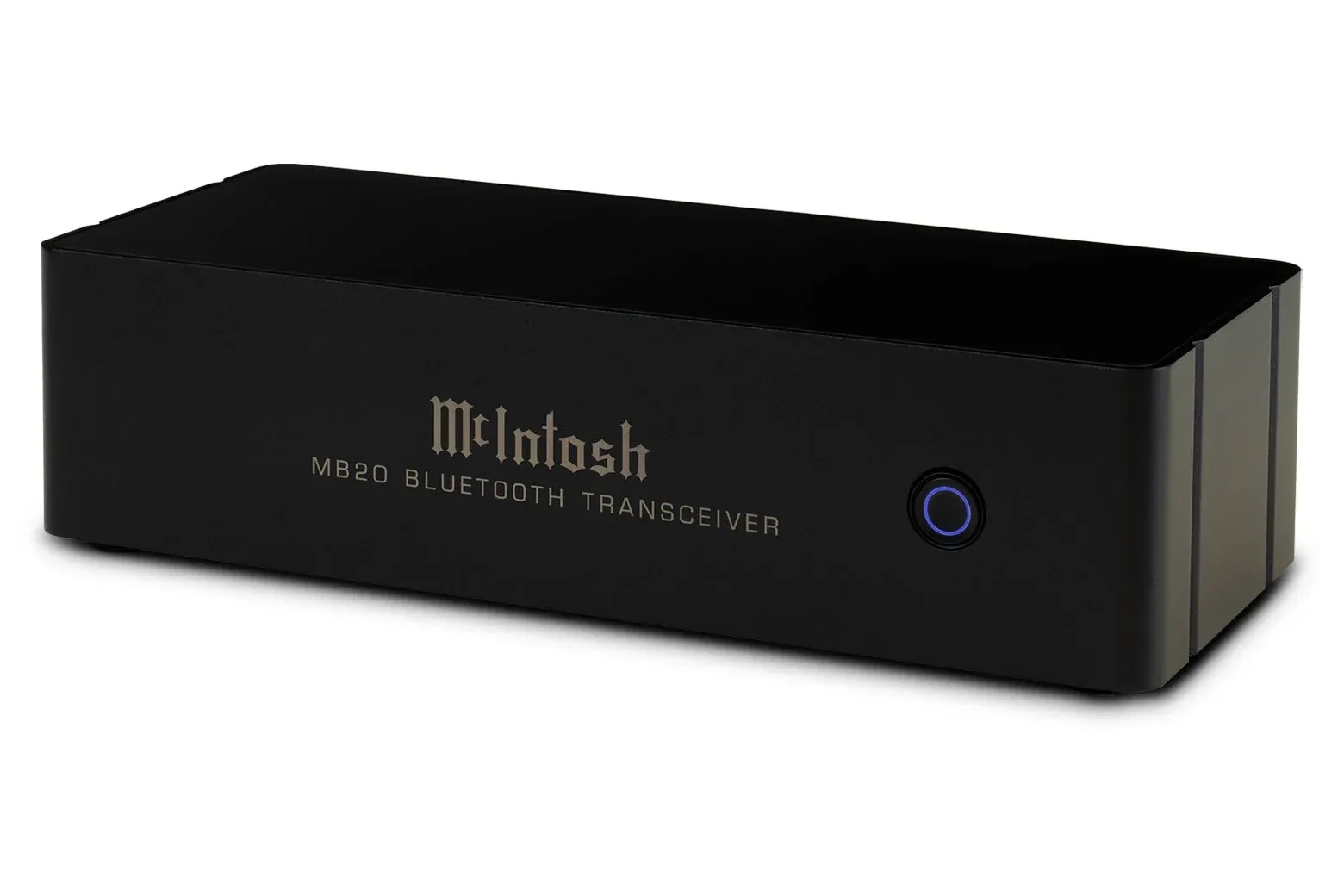

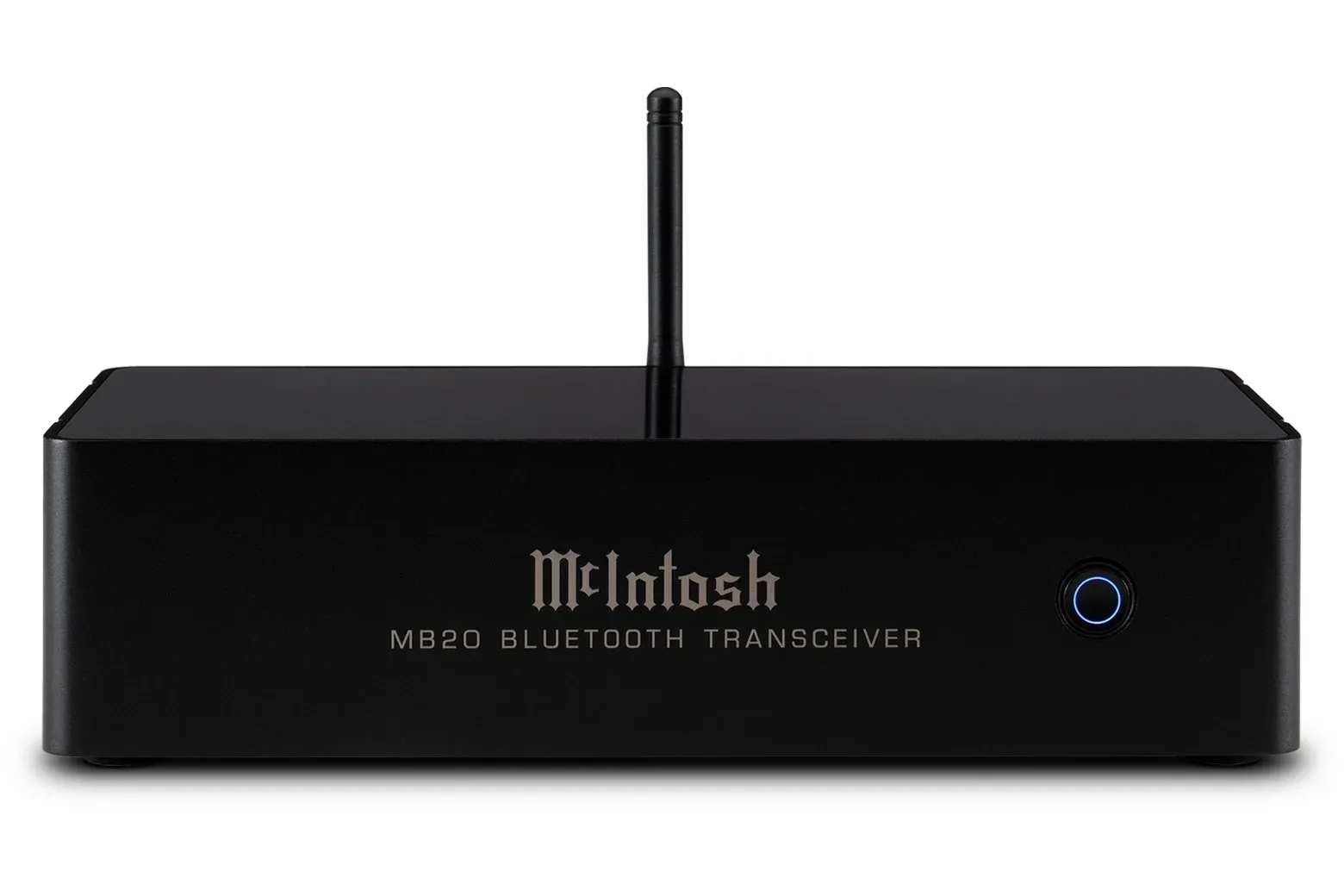

Mcintosh MB20 Bluetooth Transceiver

ELECTRONIC SPECIFICATIONS

• Total Harmonic Distortion

  < 0.005%

• Frequency Response

  +/-0.5dB from 20Hz to 20,000Hz

• Maximum Volts Out (Balanced / Unbalanced)

  5/2.5 V RMS

• Signal To Noise Ratio

  > 100dB

• Output Impedance

  Minimum load 500 Ohms

• Dynamic Range

  N/A

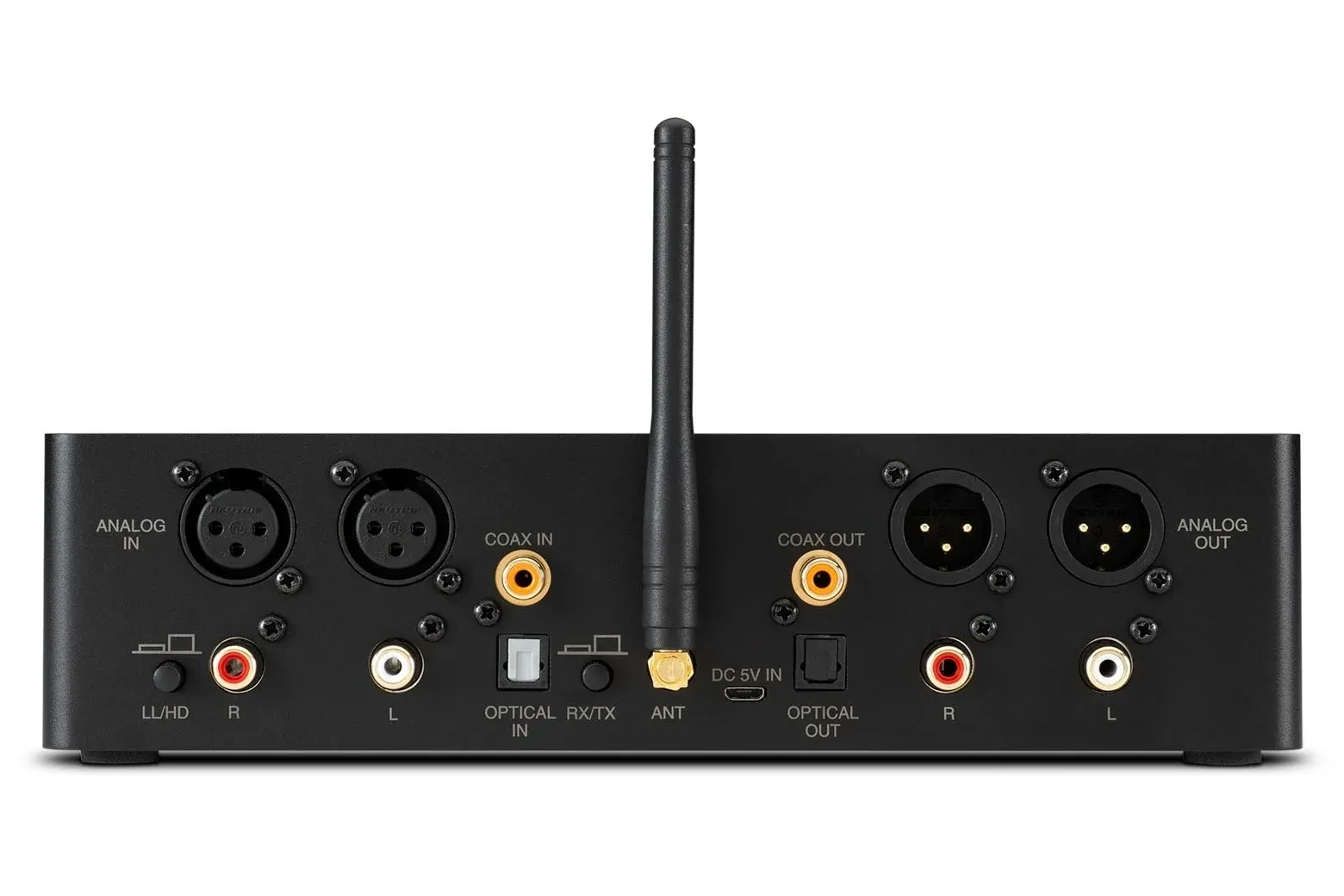

CONNECTIVITY

• Balanced Input

  1

• Balanced Output

  1

• Unbalanced Input

  1

• Unbalanced Output

  1

• Digital Coaxial Input

  1

• Digital Coaxial Output

  1

• Digital Optical Input

  1

• Digital Optical Output

  1

• Digital USB Input

  0

• Digital USB Audio Output

  0

• Network Connection

  Bluetooth

• DVI Output

  0

• HDMI Output

  0

• VGA Output

  0

• eSata Input

  0

DIGITAL AUDIO SPECIFICATIONS

• Digital Input Format

  PCM

• Digital Input Sample Rate

  Up to 24-Bit/192kHz

• Digital Output Format

  24-Bit/96kHz

• Digital Output Sample Rate

  96kHz

CONTROL

• Power Control Input

  0

• Power Control Output

  0

• Rear Panel Data Input

  0

• Rear Panel IR Sensor Input

  0

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D)

  9-29/64" (24cm) x 2-1/2" (6.35cm) (antenna in upright position adds additional 1-3/8" (3.43cm) x 3-15/16" (10.01cm)

• Unit Weight

  2.5 lbs (1.2kg)

• Shipping Weight

  3.5 lbs (1.6kg)
