V90-DAC - Specifications

Performance

• Jitter: <12 picoseconds peak to peak
• THD(+ noise): <0.004% 20Hz to 20 kHz
• Frequency Response: +0, –0.1dB, 20Hz to 20 kHz
• Crosstalk: -104dB, 20Hz to 20 kHz
• Signal / Noise ratio: -117dB, 20Hz to 20 kHz

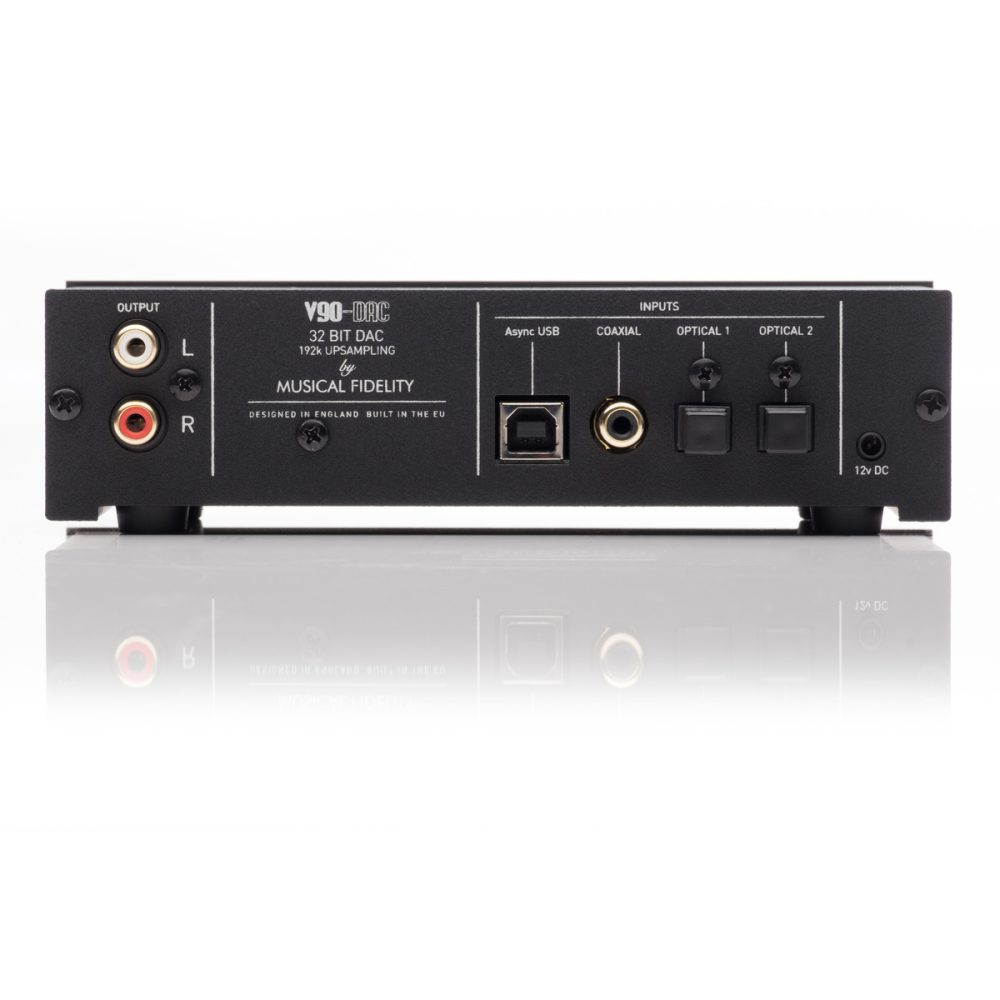

Inputs

• 1x RCA coaxial connector SPDIF 32-bit/192 kHz (16-24 bit stereo PCM)
• 2x TOSLINK optical connector 32-bit/96 kHz (16-24 bit stereo PCM)
• 1x USB type ‘B’ connector - Asynchronous data stream at up to 24-bit/96kHz (Determined by source file/computer settings)

Outputs

• 1x line level RCA (phono)

General

• Dimensions - WxHxD (mm): 170 x 47 x 102
• Weight (unpacked / packed): 600g / 1.1 kg

Supplied Accessories

• 1x 12v 500mA DC power supply
