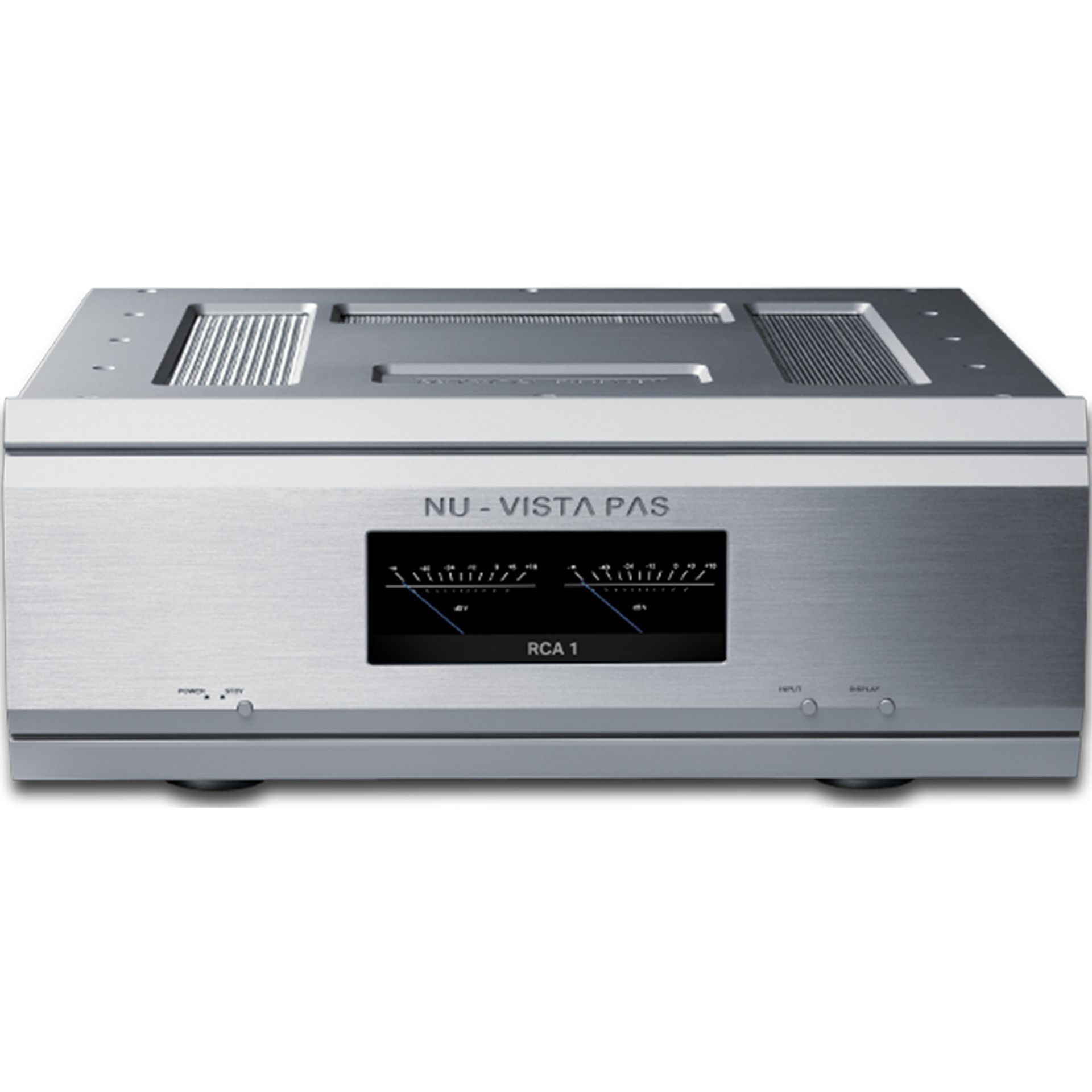

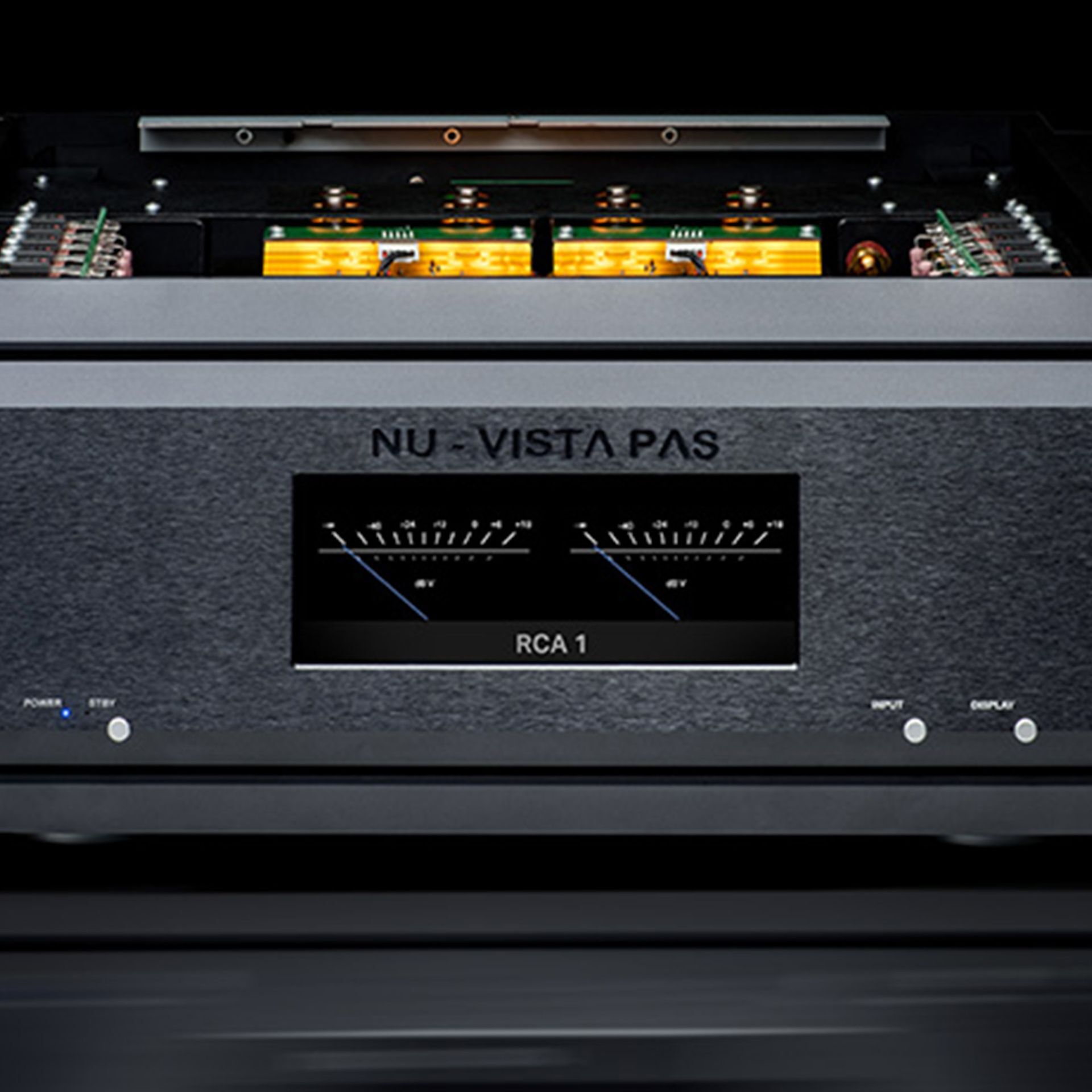

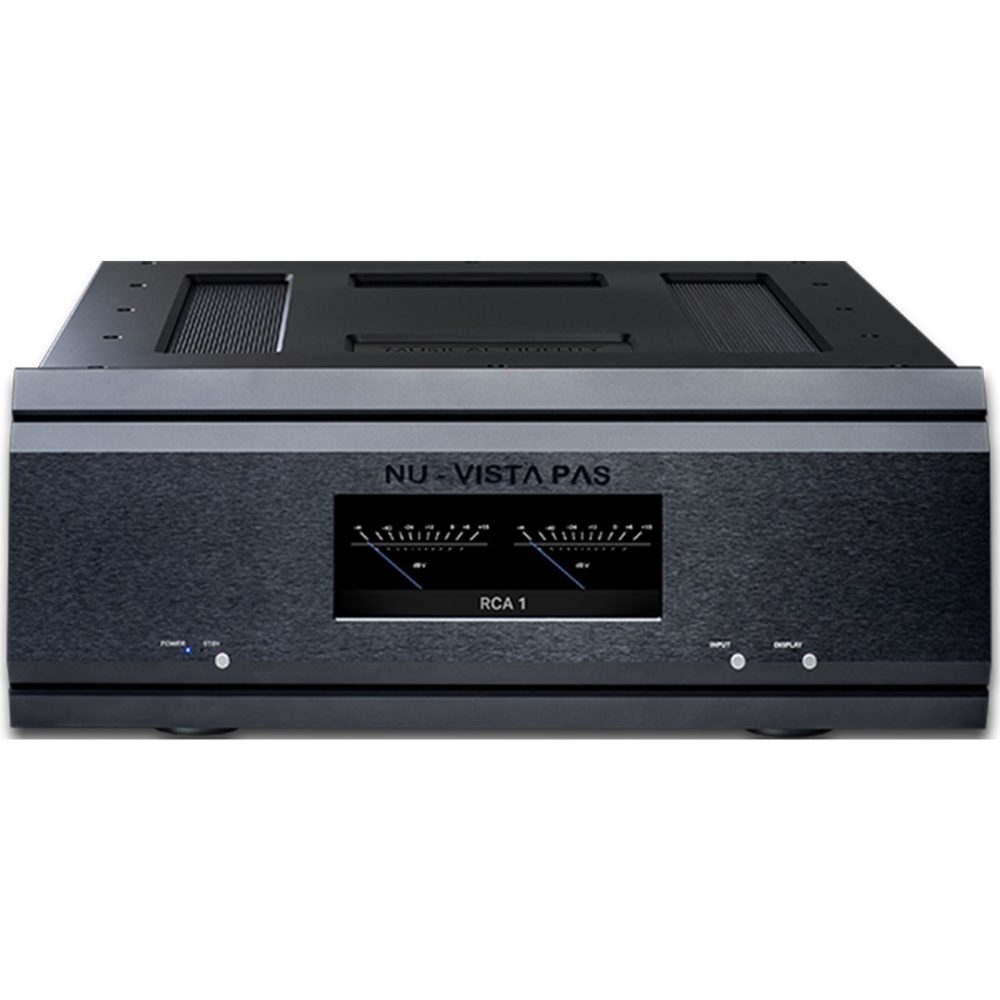

MUSICAL FIDELITY NU-VISTA PAS
00107
€0,00
Pre-order
Quantity:
1
Pre-Order
Product Details
Brand:
Musical Fidelity
Nu-Vista PAS - Specifications
Amplifier
High output power, greater than 300W into 8 ohms, 500W into 4 ohms, 1000W peaks into 2 ohms
Output Voltage: 49 Volts RMS
Output Current: 130 Amps peak to peak
Damping factor: 200

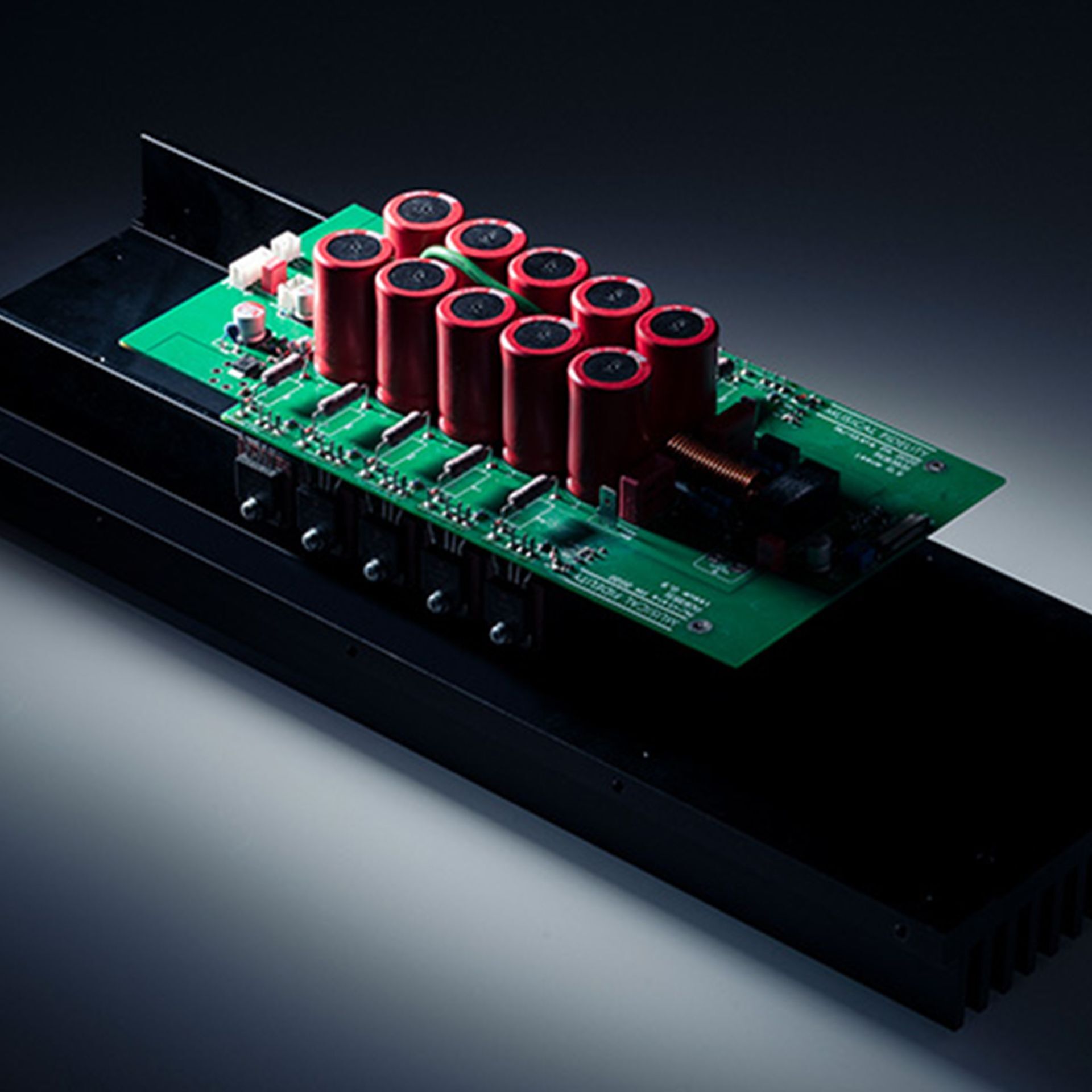

Output devices: 5 pairs per channel
Gain: 16x (23.5 dB)
THD+N: < 0.003 % typical, 20Hz to 20 kHz
Signal / noise ratio: >108dB ‘A’-weighted
Channel separation: >96dB
Input impedance: 100 k Ohms
Input sensitivity for full output: 3 Volts RMS
Frequency response: + 0, –1dB, 5Hz to 50 kHz

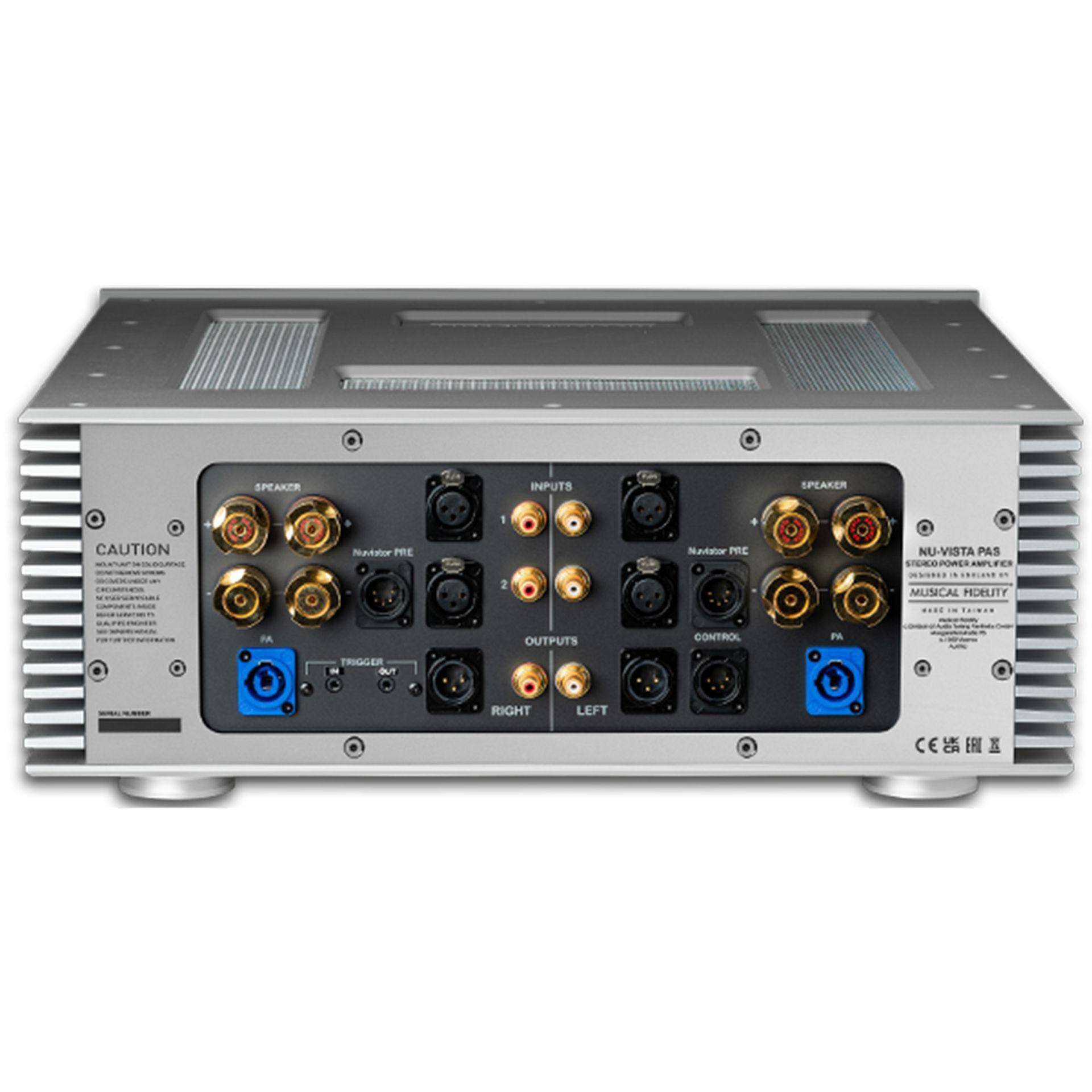

In & Output
4 fully independent inputs: 2x RCA & 2x XLR
2 loop through outputs: 1x RCA & 1x XLR

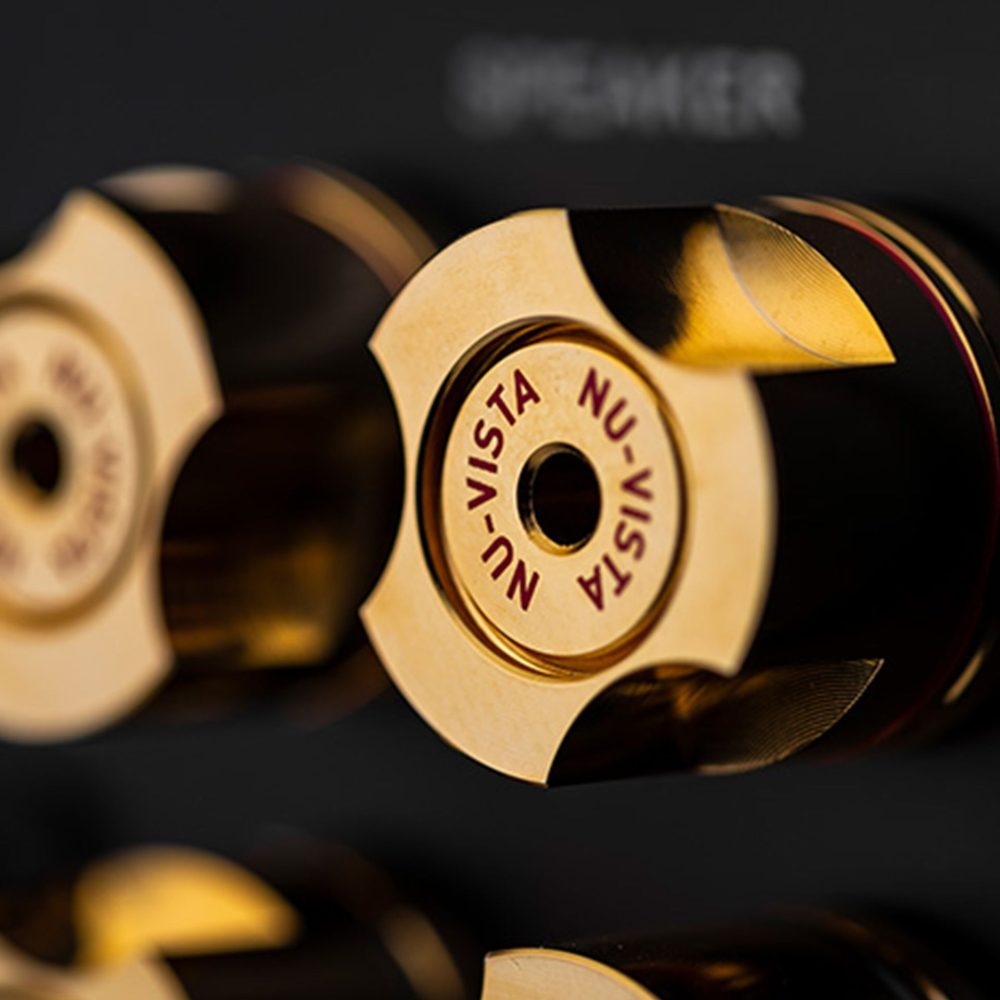

Speaker outputs: 2 pairs 4mm banana plug/binding posts
Trigger input and output: 3.5mm mono jack socket
Trigger level ±5V to ±12V
General Information
Weight PAS: 27kg net (35kg)

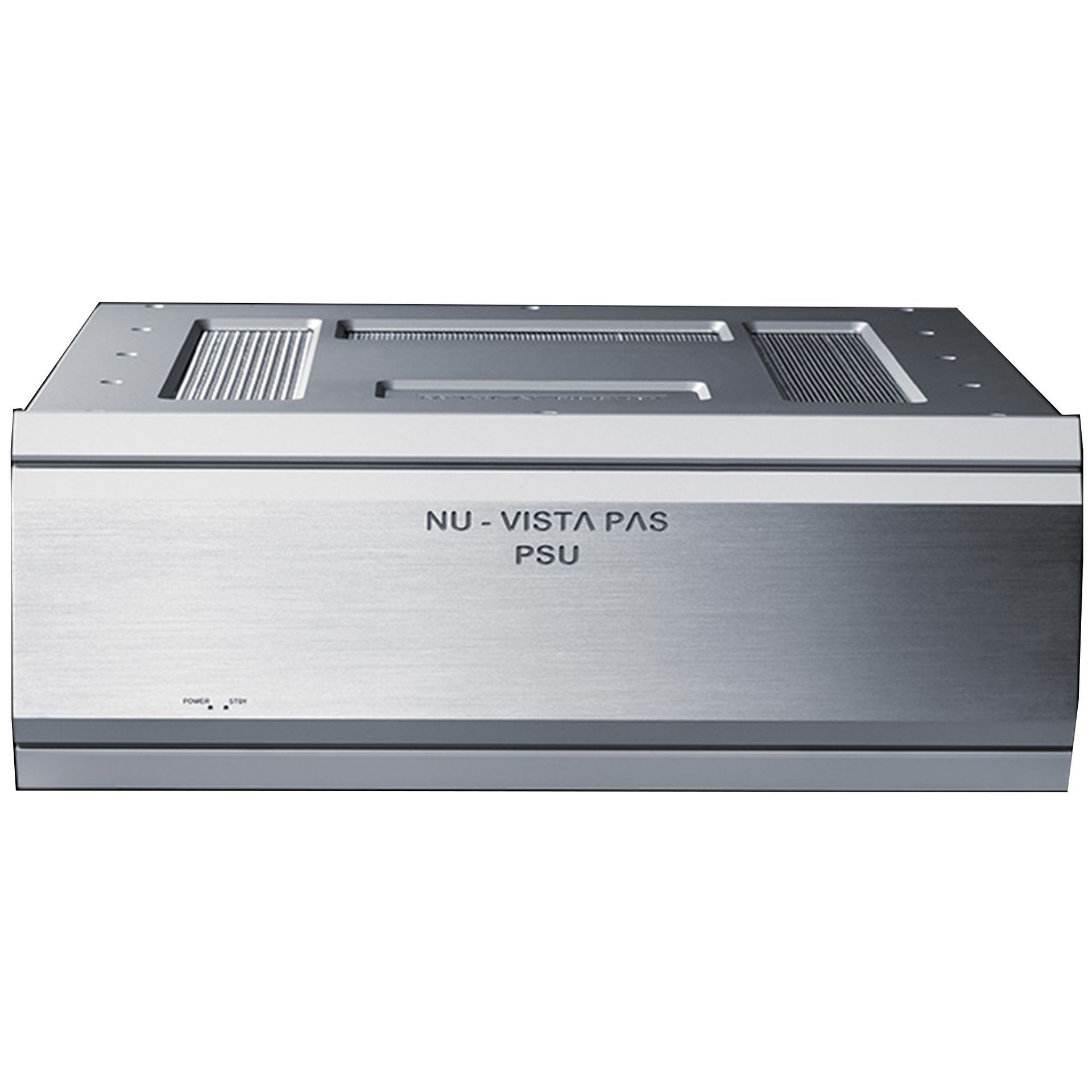

Weight PAS PSU: 40kg net (50kg)
Dimensions PAS (WxHxD): 483 x 187,5 x 475 (494 with connectors)
Dimensions PAS PSU (WxHxD): 483 x 187,5 x 475 (478 with connectors)
Mains voltages: 115/230VAC 50/60Hz (factory pre-set); 100VAC 50/60Hz (alternative)
Consumption <0.5W in standby mode; 130W on and idle; 1060W maximum
