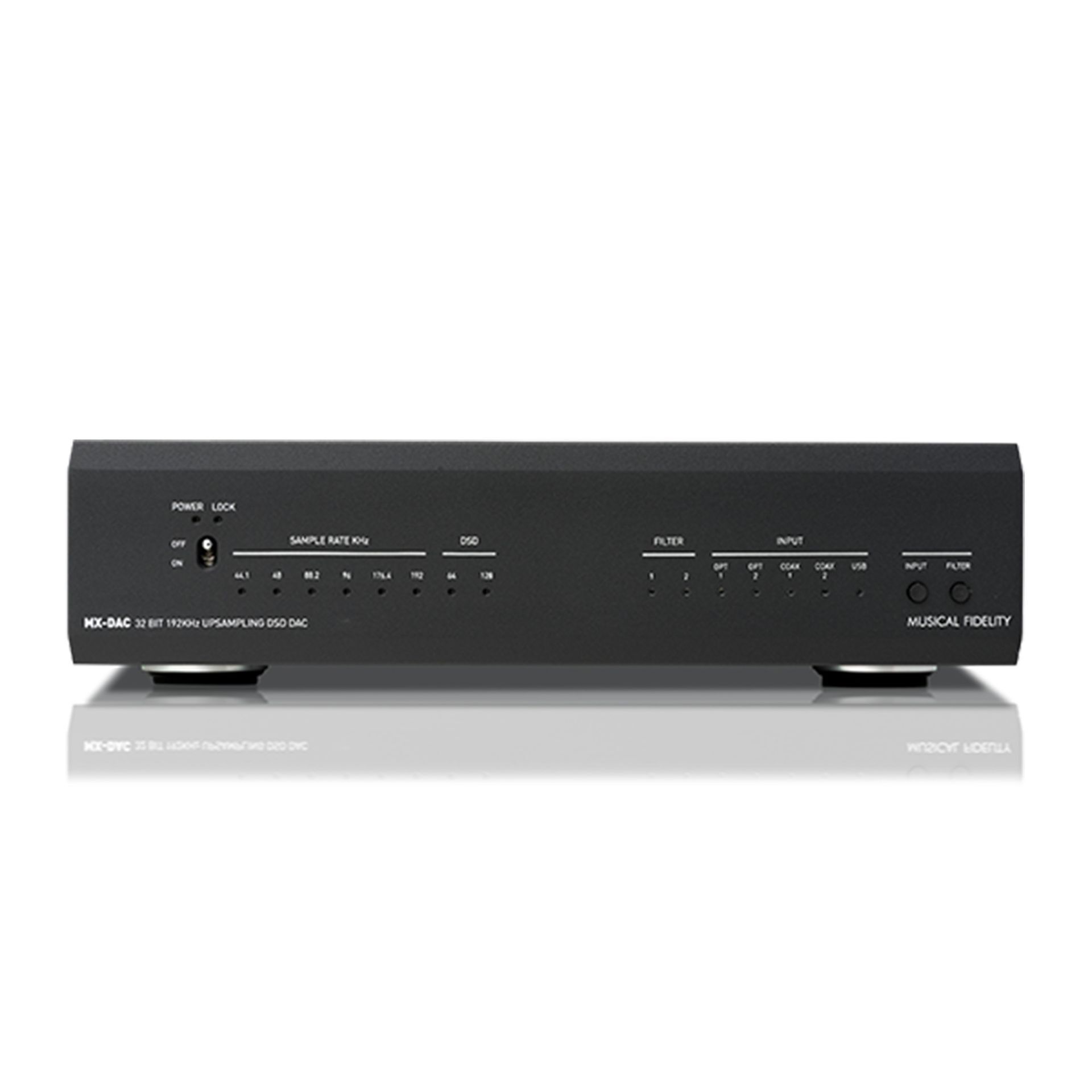

MX-DAC - Specifications

DAC Structure

• Sample rate converter: SRC4392 up-sampling data to 192kHz
• Digital to Analogue converter: PCM1795 32 bit / 192kHz Multi-bit Sigma-Delta type

Performance

• Output Voltage: 2 Volts RMS single-ended (RCA)
• Output Voltage: 4 Volts RMS balanced (XLR)
• PCM THD: <0.002%
• PCM THD (+ noise): <0.003%
• DSD THD: <0.003%
• DSD THD (+ noise): <0.006%
• PCM Frequency Response: –3dB, 2Hz to 90kHz
• PCM Frequency Response: –3dB, 2Hz to 40kHz
• Channel Separation: -110dB

Capabilities

• Coaxial Inputs: S/PDIF up to 24 bit / 192kHz
• Optical Inputs: S/PDIF up to 24 bit / 192kHz

Inputs

• 2x RCA coaxial connector SPDIF 32-192kHz
• (16-24 bit stereo PCM)
• 2x TOSLINK optical connector 32-192kHz
• (16-24 bit stereo PCM)
• 1x USB type ‘B’ connector
• Asynchronous data stream at up to 24-bit/192kHz PCM as well as DSD64 and DSD128
• (Determined by source file/computer settings)

Outputs

• 1x line level RCA (single-ended)
• 1x XLR Male sockets (balanced) to EIA RS-297-A
• General
• Dimensions - WxHxD (mm): 220 x 53 x 215
• Weight (unpacked / packed): 1.9Kg / 2.4Kg
• Power Consumption: <0.25 Watts standby, <1 Watt max.

Supplied Accessories

• 1x 5v / 2A DC power supply (90-250VAC universal worldwide supply)
• Windows driver CD
• User manual
