M8sPRE - Specifications

Pre-Amplifier

• THD(+ noise) - single ended: <0.005%
• THD(+ noise) - XLR Balanced: <0.004%
• Signal to Noise Ratio: >118dB ‘A’-weighted
• Frequency Response: +0, –1dB, 5Hz to 100 kHz

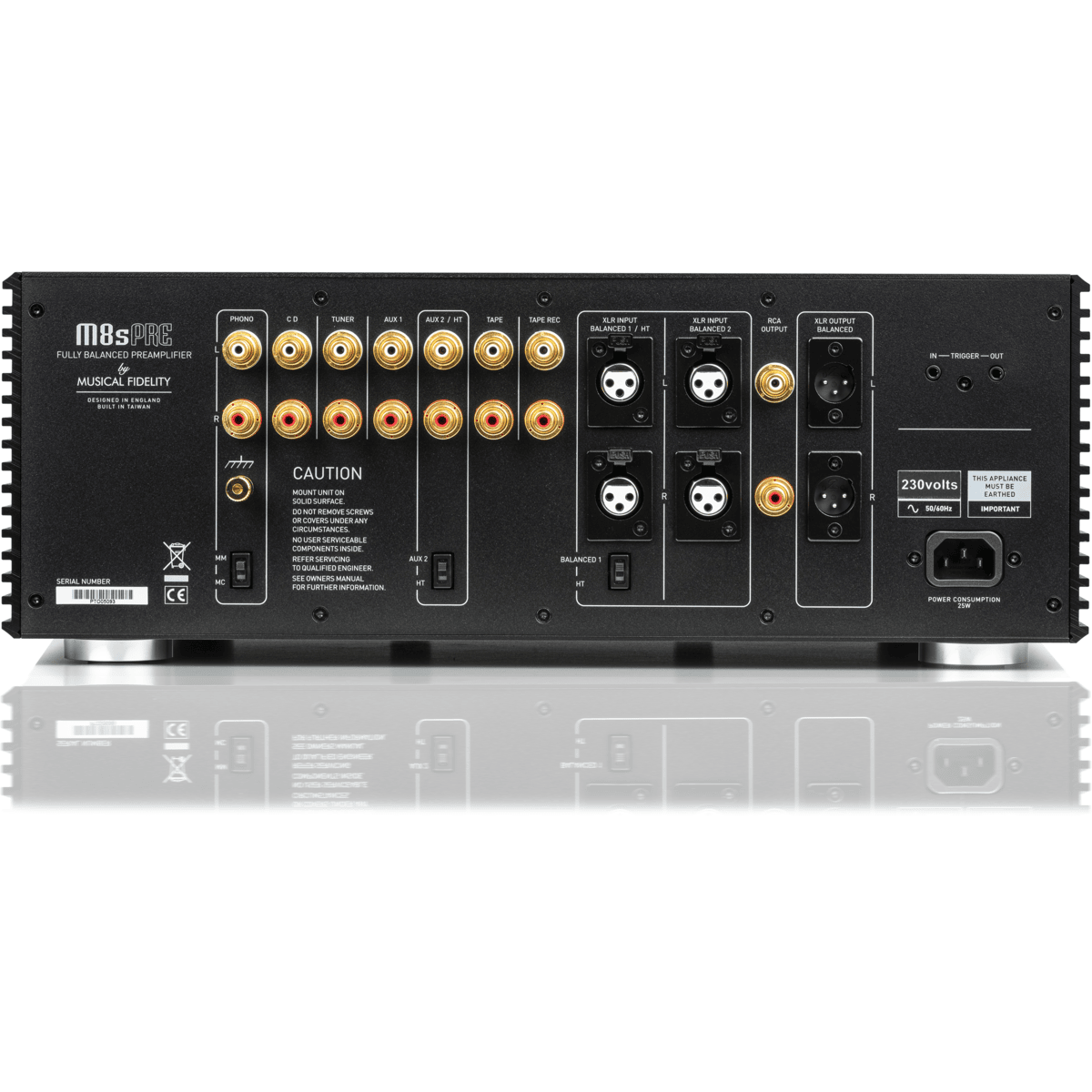

Inputs

• Inputs 2 x XLR balanced line level (1 with home theatre bypass)
• 5 x RCA / phono line level (1 with home theatre bypass)
• Trigger in

Outputs

• 1 x RCA pre out
• 1 x XLR balanced pre out
• 1 x RCA fixed out
• Trigger out

General

• Dimensions - WxHxD (mm): 440 x 162 x 400
• Weight (unpacked / packed): 17 kg / 23 kg
