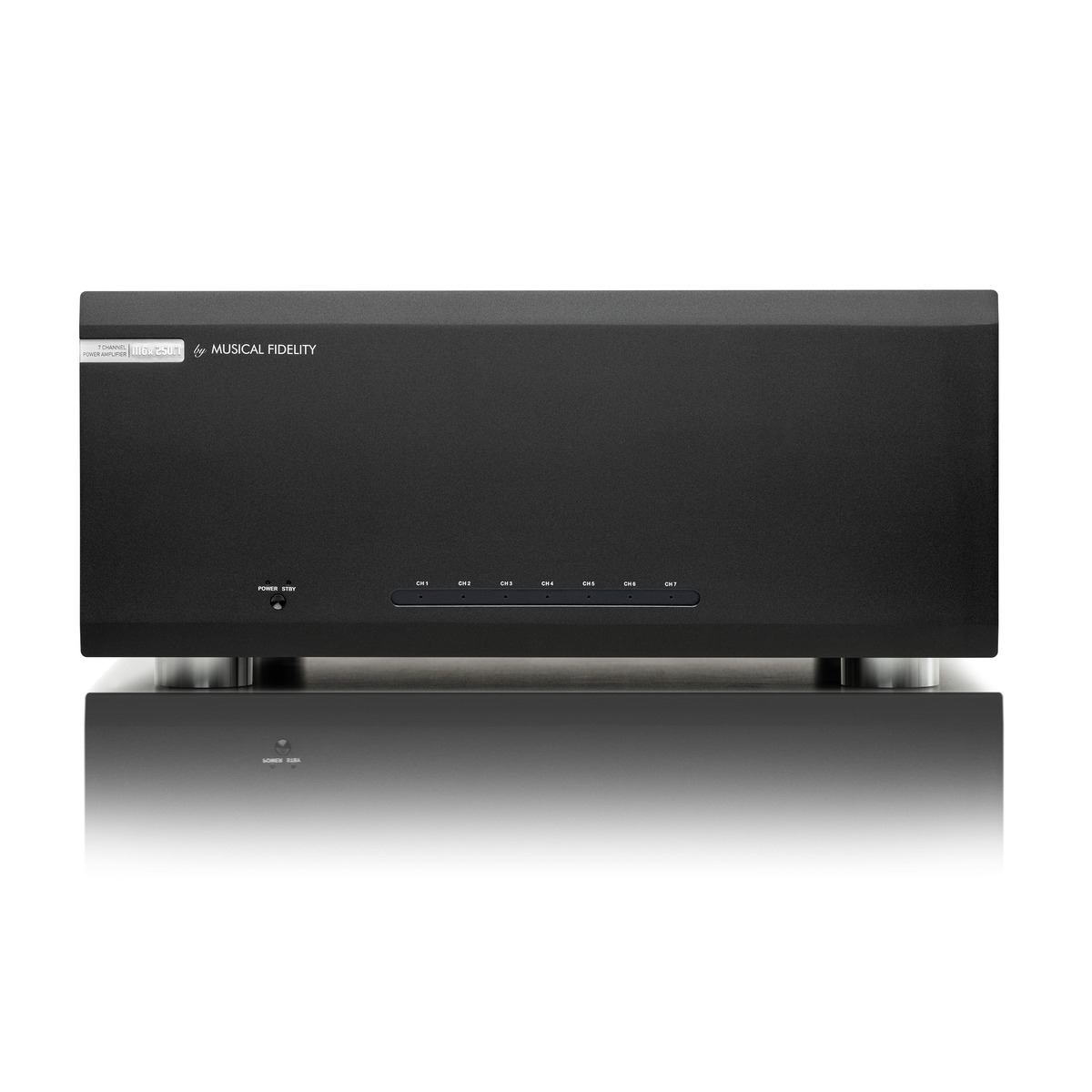

M6x 250.7 - Specifications

Output

• Power: 7x 250W/4 ohms (Peak: 400W)
• THD+N: 0,003% at 100W power output
• Frequency Response: 20Hz - 20kHz for 0,5dB
• SNR: 105dB at 1kHz at 200W power output
• Damping Factor: >300
• Crosstalk 20Hz - 20kHz: >80dB

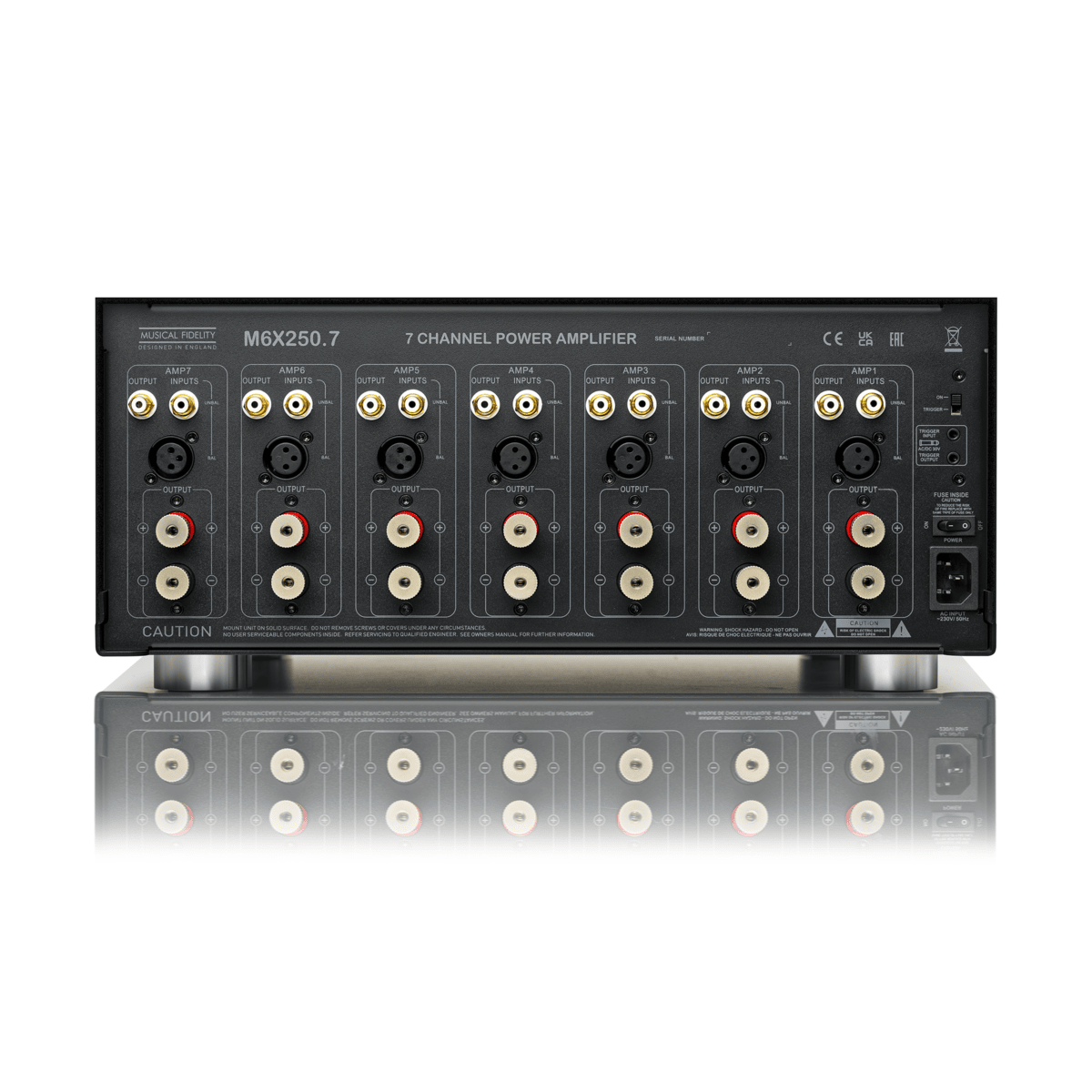

Connections

• 7x line level RCA input
• 7x line level balanced XLR input
• 7x line level RCA through output
• 7x pair speaker terminals
• 1x Trigger input & output

Input Sensitivity

• 700mV at RCA input, 1,4V at XLR input

General Information

• Dimensions (WxHxD): 450 x 195 x 435mm
• Main voltages: 230V/115V Internally set or 100V optional AC 50/60Hz
• Max. Consumption: 2500W, <0.5W in standby
• Weight: 32,5kg (ca. 35kg incl. shipping carton)
