LX2-LPS - Specifications

MM

• Input Impedance: 47 KΩ
• Input Sensitivity: 3.0mV
• Total Harmonic Distortion: 0.01%
• Signal to Noise Ratio: >80dB
• Input Overload Margin: 15dB

MC

• Input Impedance: 100 Ω
• Input Sensitivity: 300μV
• Total Harmonic Distortion: 0.01%
• Signal to Noise Ratio: >70dB
• Input Overload Margin: 22dB

General

• RIAA Response ±0.25dB
• Power Requirement 12-24V 100mA regulated

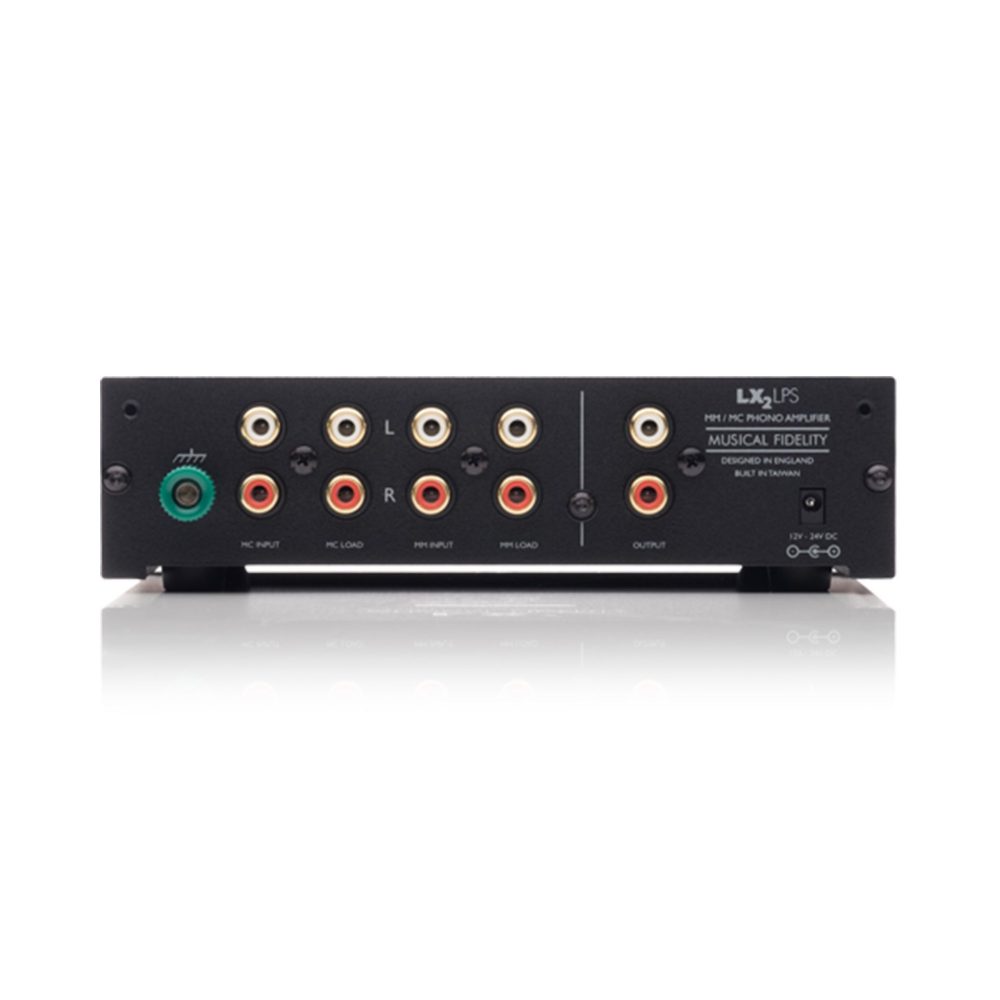

• Connections
• Moving Magnet Input: 1pr RCA sockets
• Moving Magnet Loading: 1pr RCA sockets
• Moving Coil Input: 1pr RCA sockets
• Moving Coil Loading: 1pr RCA sockets
• Power Input: DC Jack (1.3mm inner pin, outer diam. 3.5mm

Dimensions

• Length (including terminals) 197 mm
• Width 172 mm
• Height (including feet) 46.5 mm

Weight

• (Unpacked / packed): 1.05 kg/ 1.50 kg

Included accessories

• Power Supply
