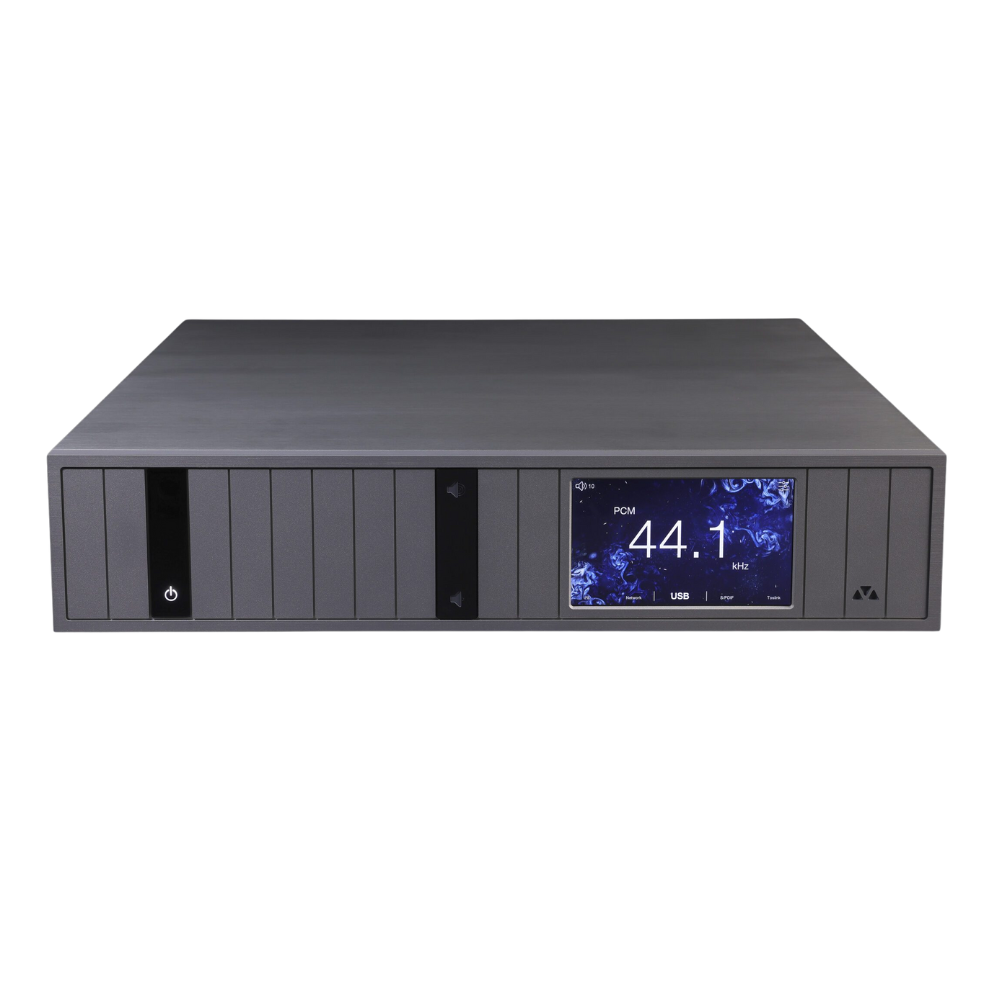

DSC starts a new era for Métronome, which launches its first “three-in-one” device: a top converter, streamer and above all digital pre-amplifier thanks to the integration of Leedh Processing’s
volume control technology.
Integrating the online services of Tidal, Qobuz, Spotify and Deezer (after subscribing), it also manages all the music stored on your local network by UPnP and DLNA protocols.
DSC decodes DSD natively up to DSD512, all PCM files up to 32-bit / 384kHz, and supports the MQA codec. It is based on an ES9038PRO conversion microprocessor, and integrates the most efficient internal computing systems.

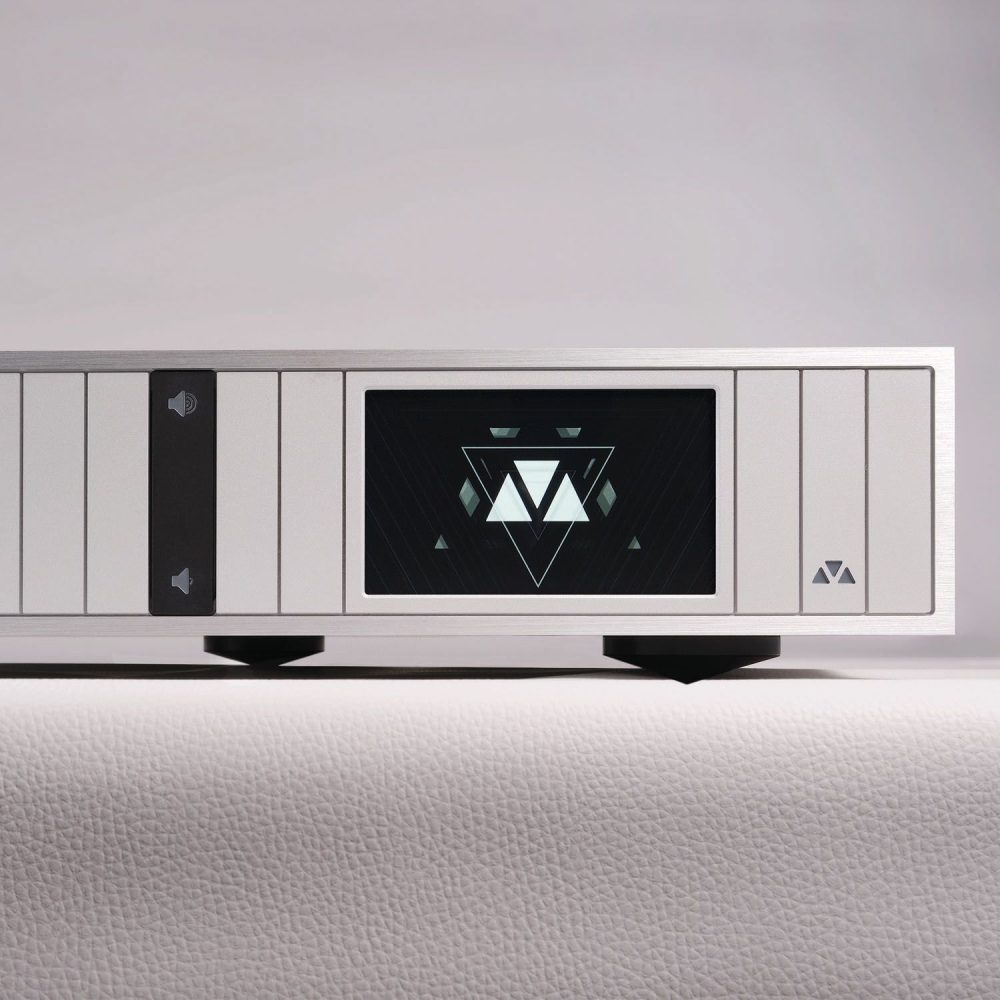

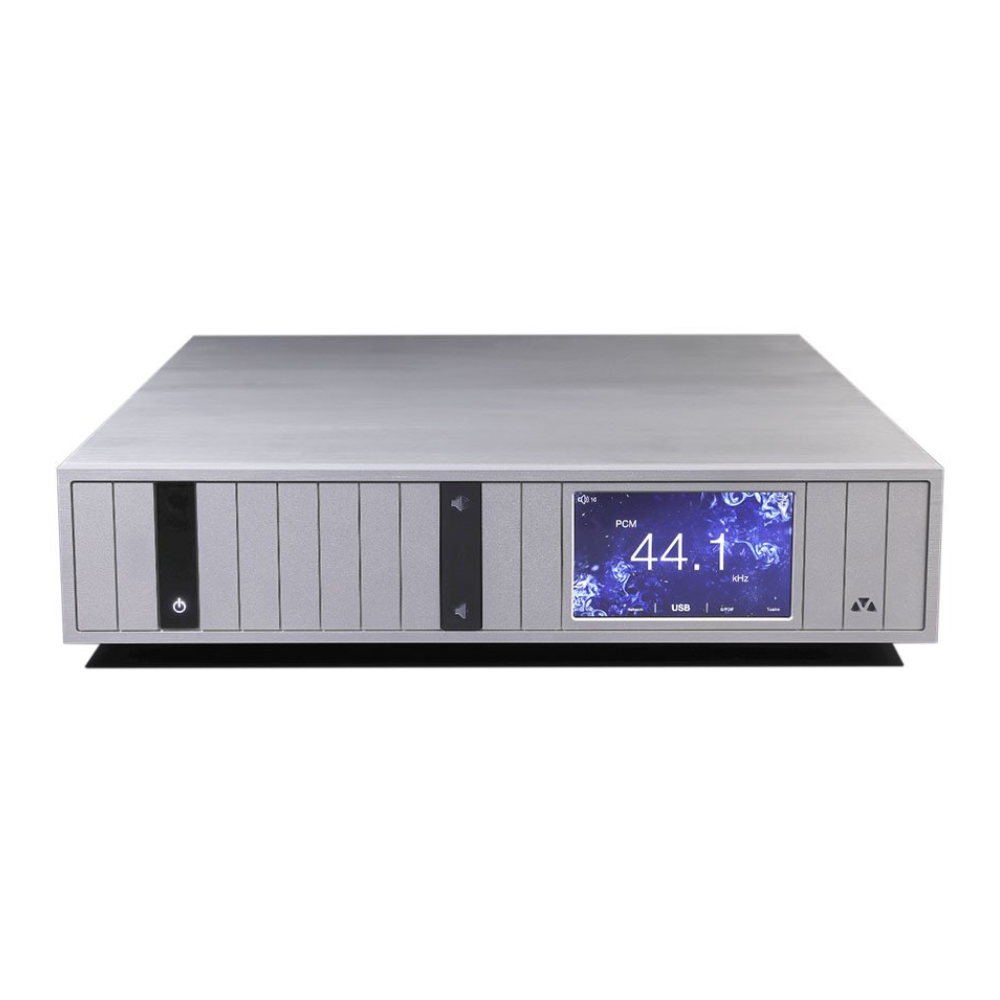

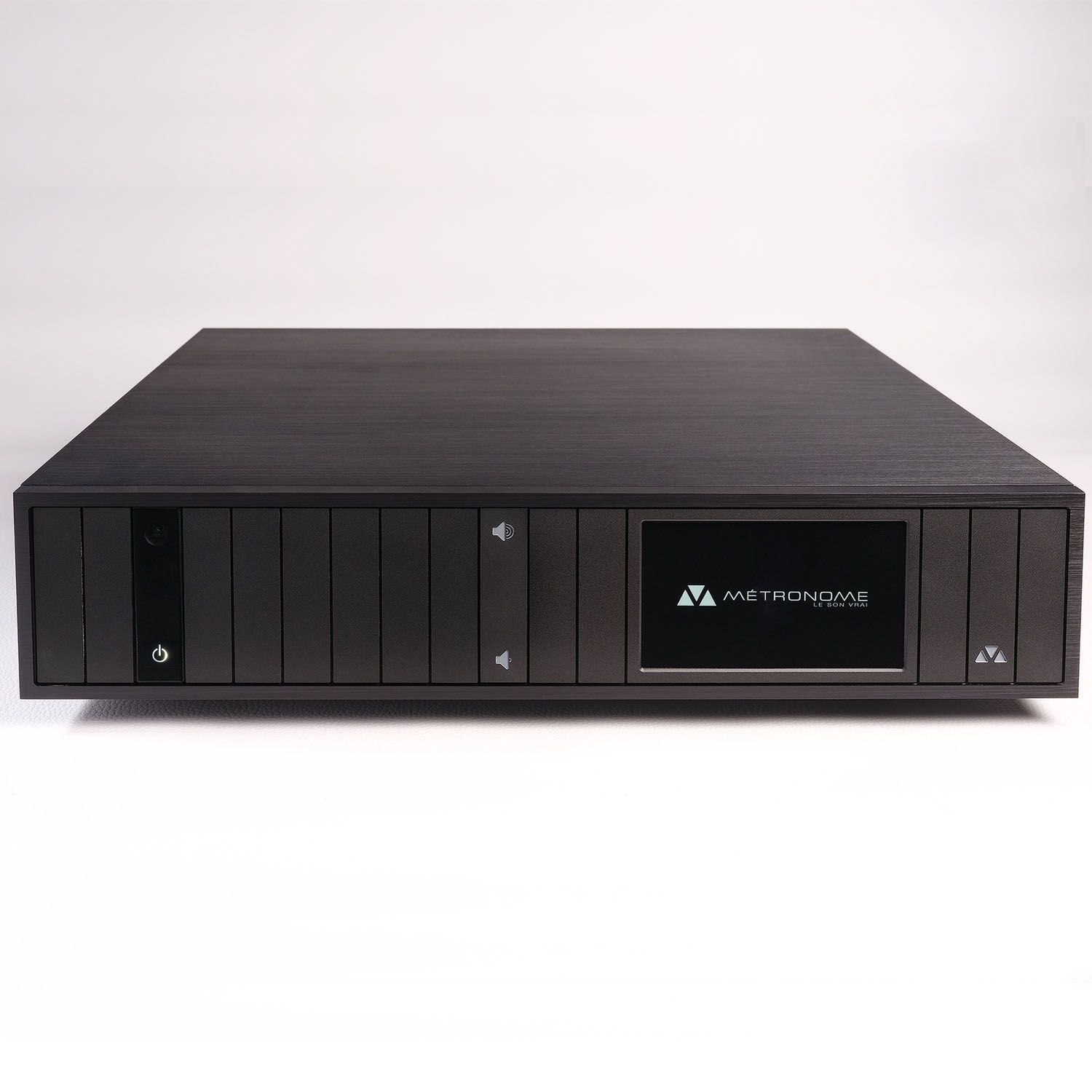

The complete DSC chassis is machined from high grade billets of aluminum, available in black and silver finishes.
Technical specifications DSC
Resolution
32 bits / 384 kHz DSD 64 to 512 (eq. frequency of 22.4 MHz)
Internal features :
Dynamic range : -137 dB / Distortion + noise : -122 dB Internal Processor 32 bit / Frequency bandwidth 32 to 768 kHz
Analog output :
Bandwidth: 10 Hz - 20 kHz +/- 0.1 dB - Dynamic capacity: 127 dB
Unbalanced adjustable gain @0dB 100 Ohms - RCA
Balanced adjustable gain @0 dB 2 kOhms – XLR
Analog outputs :
Network
1 Ethernet connector
2 USB connectors

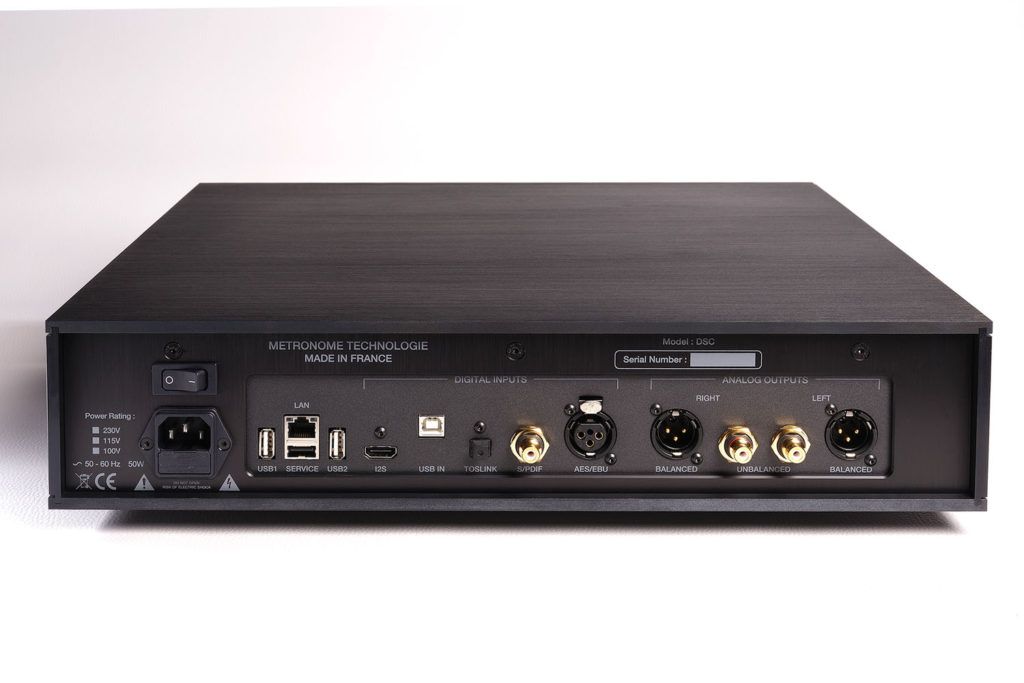

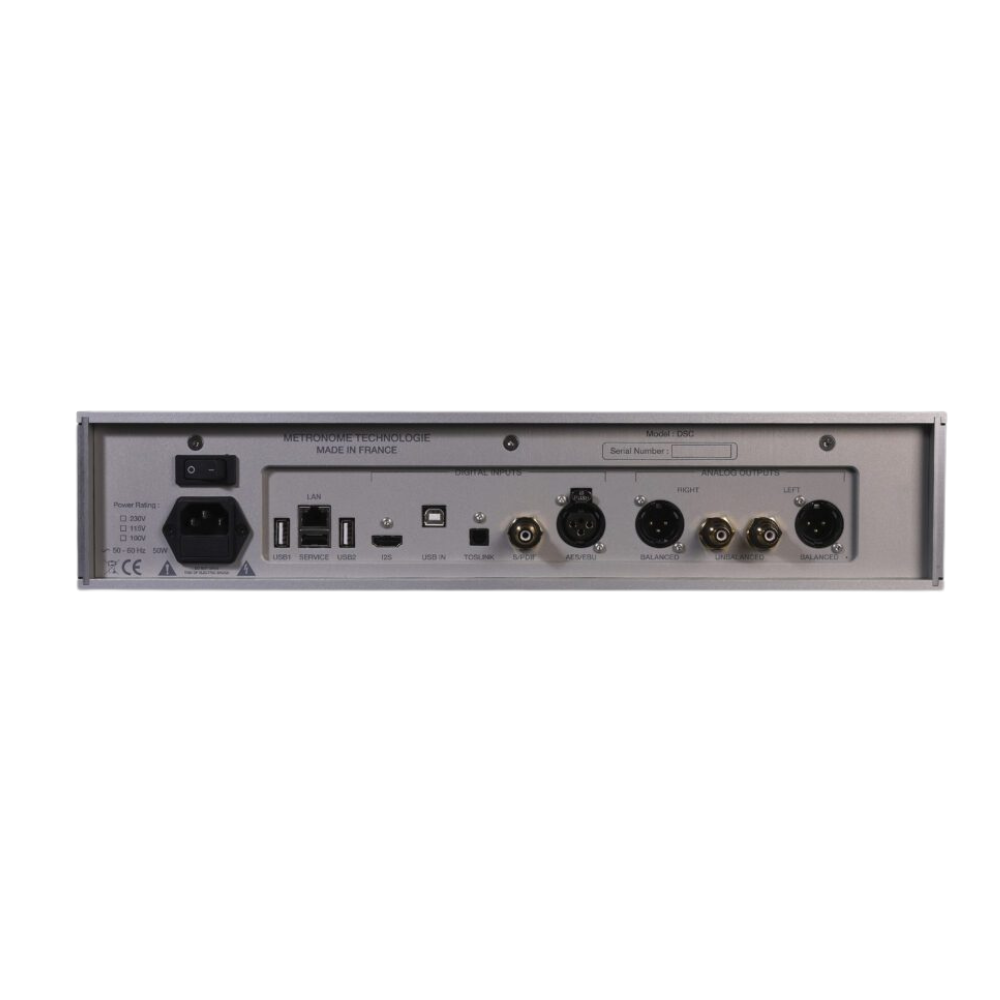

Digital inputs :
All signals from 44.1 to 192 kHz
HDMI I²S (PCM & DSD)
S/PDIF RCA
AES/EBU XLR
Optical Toslink
USB type B : PCM and DSD
Power supply :
3 toroidal transformers with 14 independent regulation lines
Voltage:
100 VAC - 50/60 Hz Japan 120/240 VAC - 50/60 Hz Other countries
Other characteristics :
Consumption : 25 VA Dimensions (LxHxP) : 430 x 105 x 430 mm Weight : 17 kg
