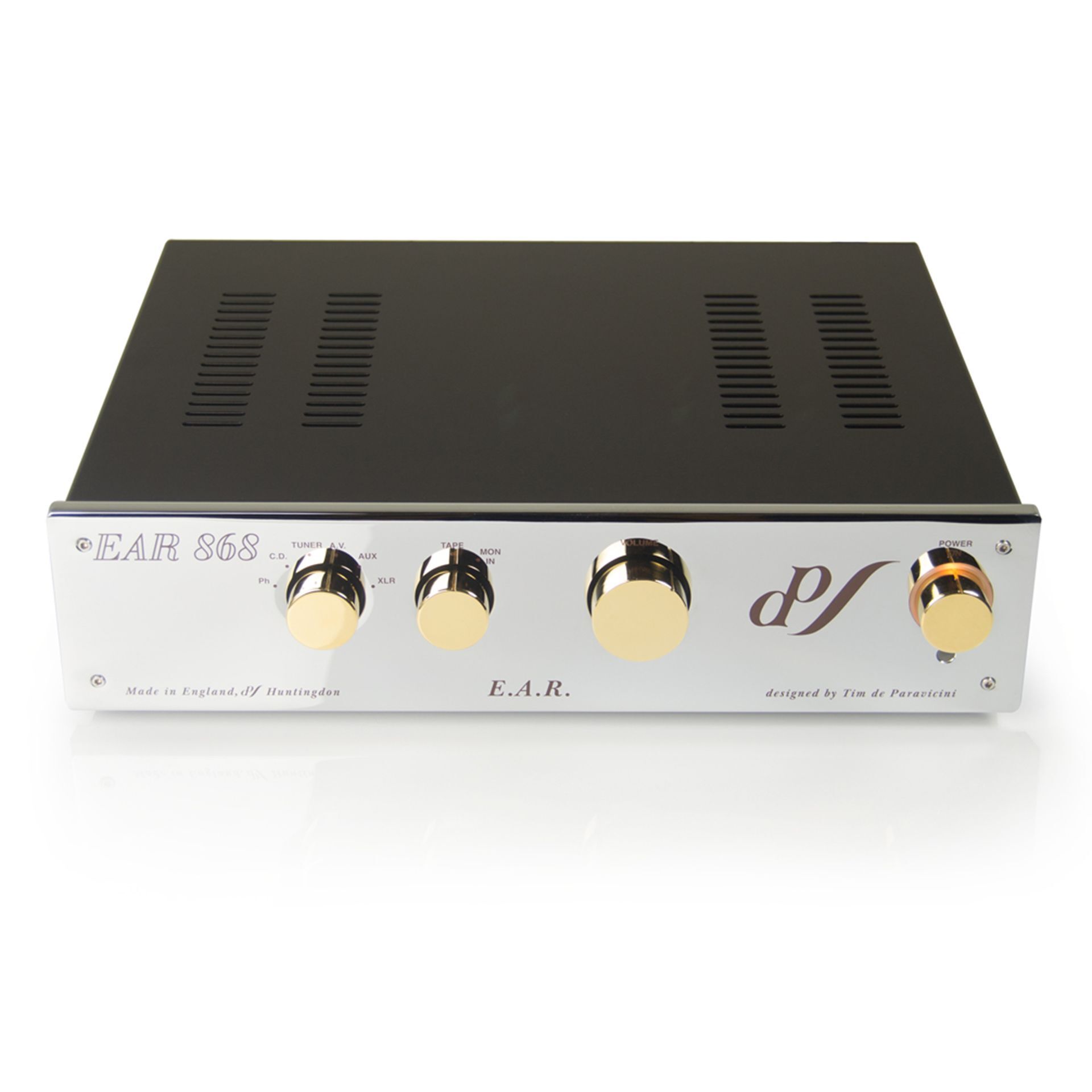

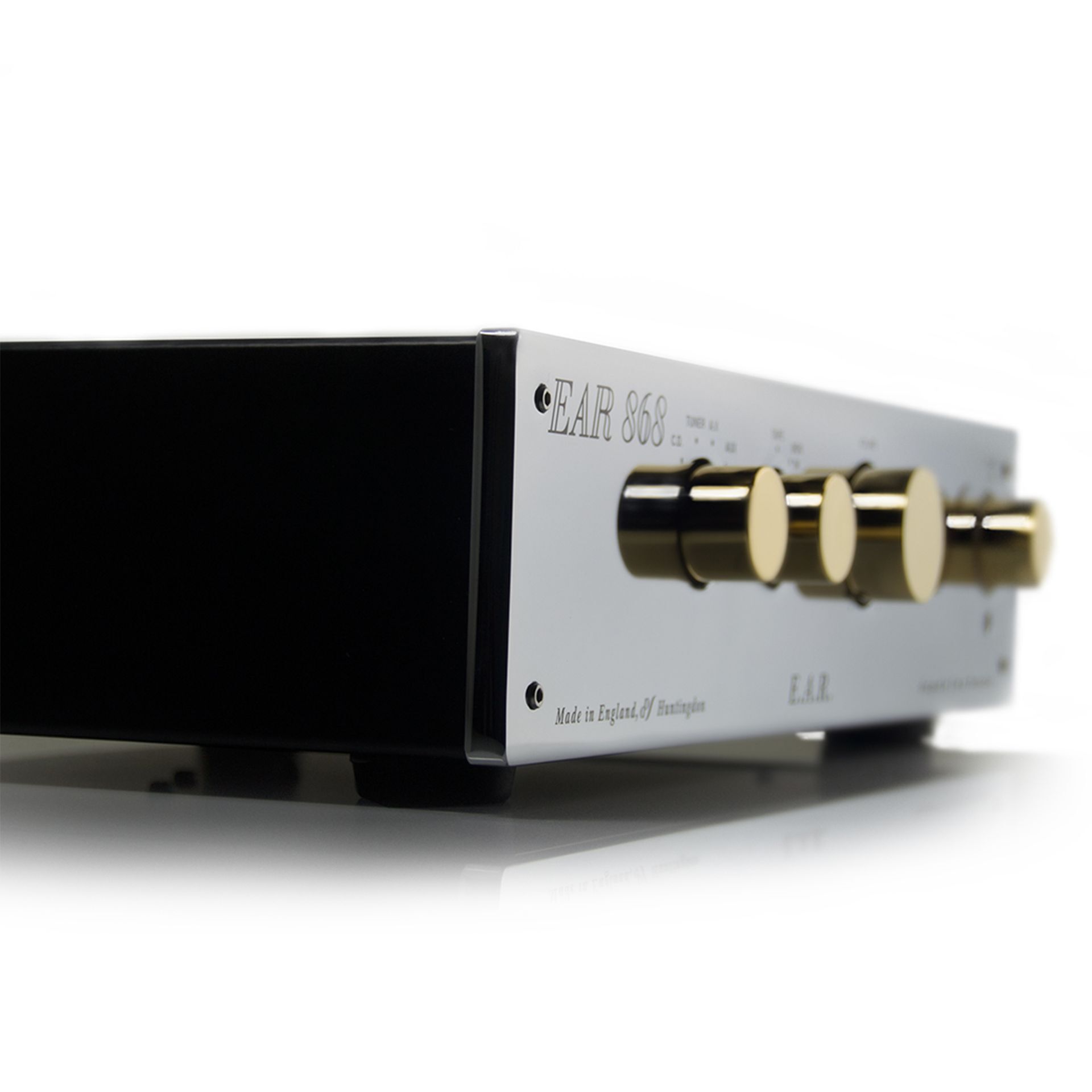

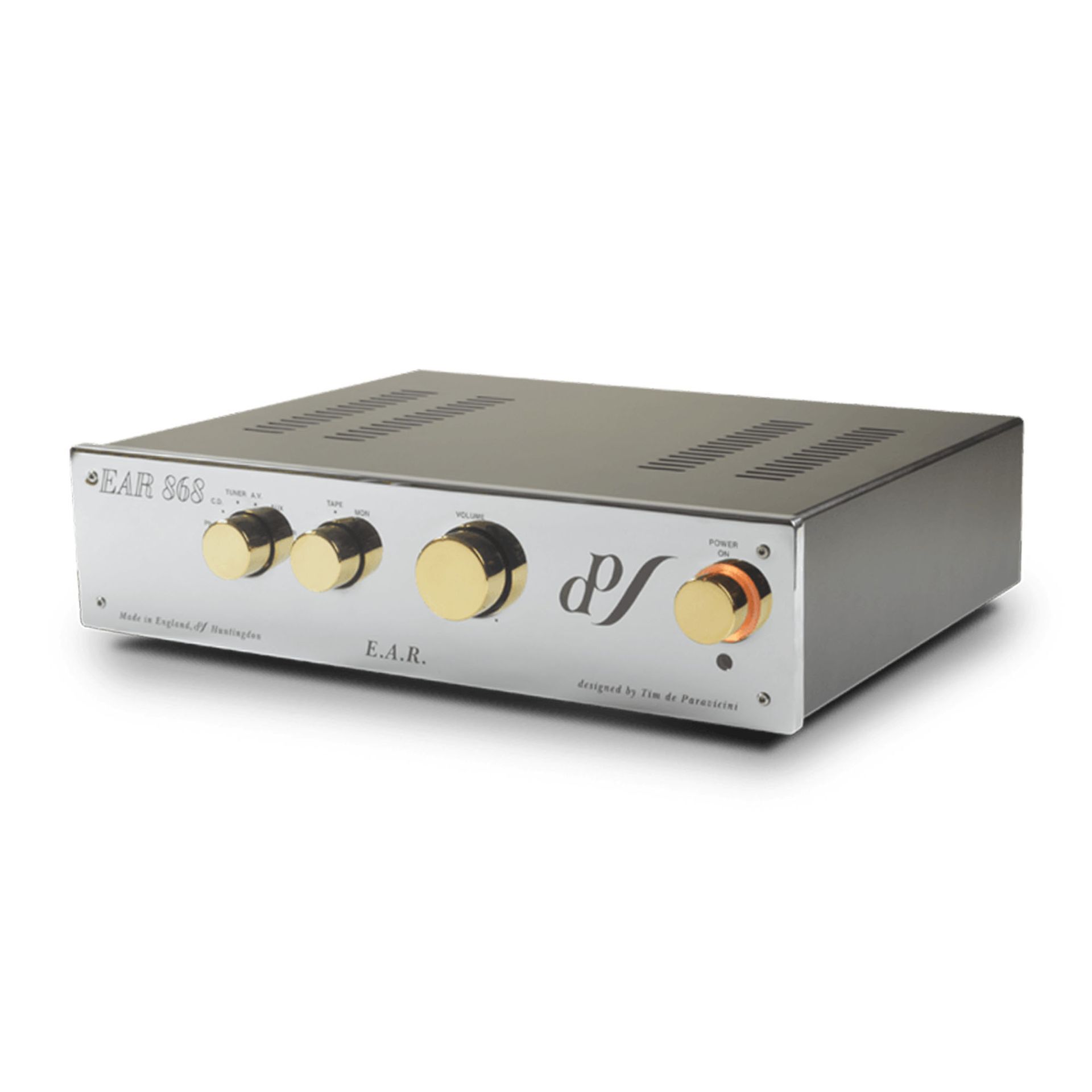

EAR 868

Valves

EAR 868L (Line only)

Two PCC88 (7DJ8)

EAR 868PL (with Phonostage)

Four PCC88 (7DJ8)

Performance

Signal-to-nosie on Line amp: 90db (1v out ref)

Phono Noise (weighted): -80db (IHF)*

Phono MM Impedance: 47KΩ*

Phono MC Impedance: 4Ω, 12Ω & 40Ω*

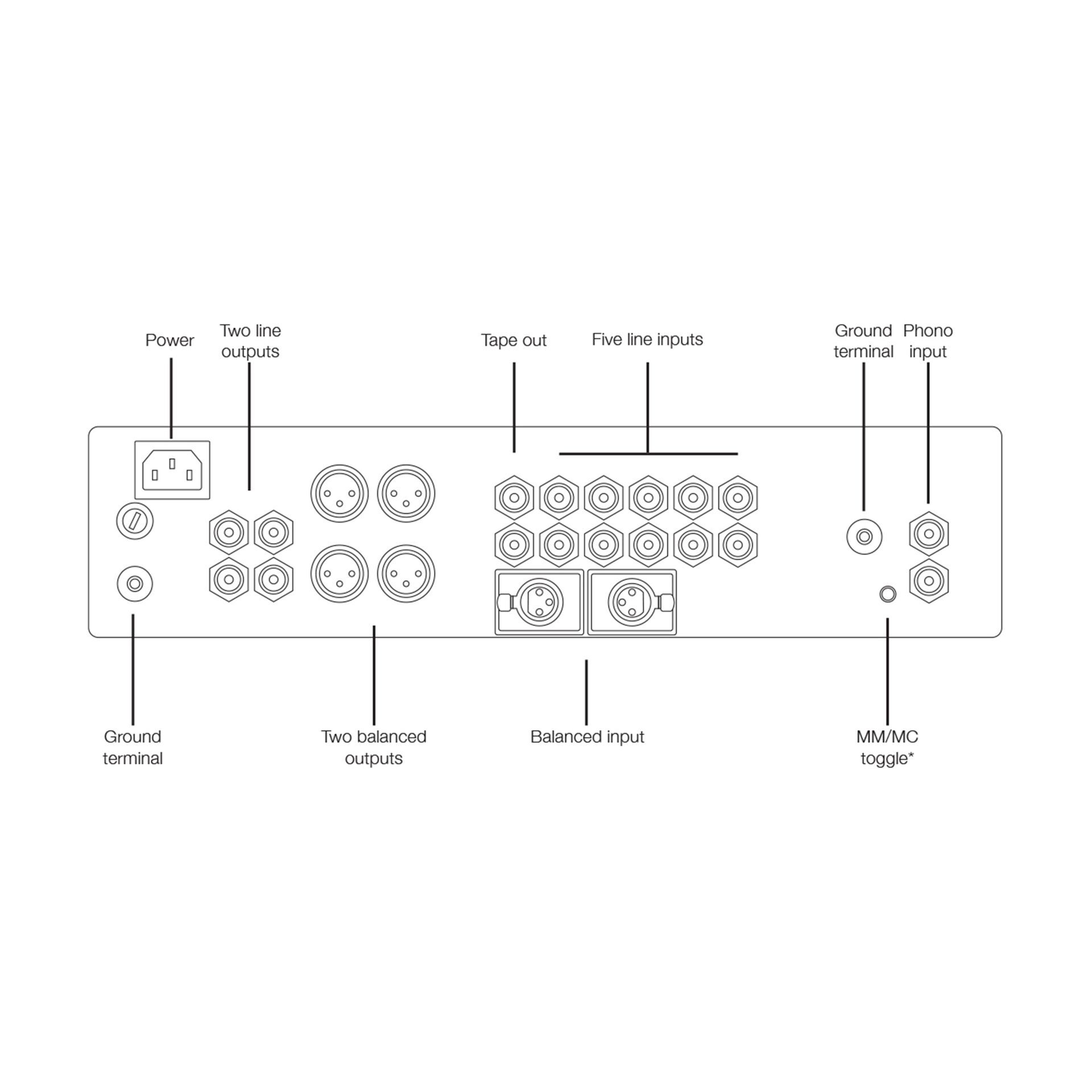

Connectivity

Five Line Inputs (RCA)

One Balanced Input (XLR)

Two Ground Terminals

One Phono Input (RCA)

EAR 868L: Line only input

EAR 868PL: Moving magnet/Moving coil

Output

Two Line Outputs (RCA) 5V into 600Ω

Two Balanced Ouputs (XLR) 5V

One Tape Monitor (RCA)

Dimensions & Weight

Weight: 10kg (22lb)

Length: 380 mm (15”)

Width: 305 mm (12”)

Height: 100mm (4”)

Power

Total Max Consumption: 24 watts

240 volt / 110 Volt / 100 Volt

(depending on model)

* Only available on EAR 868PL
